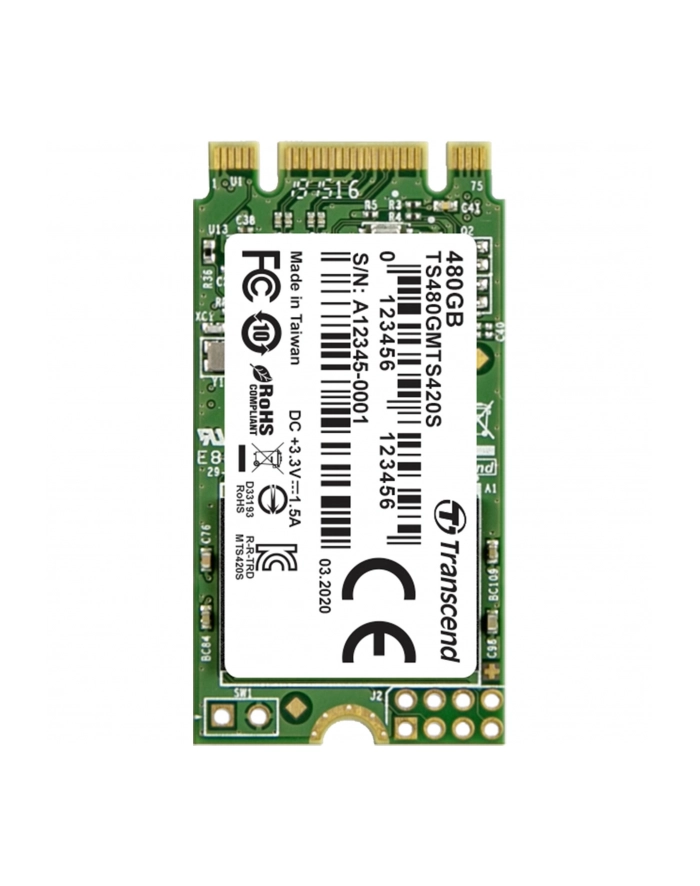

Transcend 420S 480 GB, SSD (SATA 6 Gb / s, M.2 2242)

M.2 SSD 420S Transcend's ultra-compact SATA III 6Gb/s M.2 SSD 420S addresses the high-performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Boasting high-quality flash chips and enhanced firmware algorithms, Transcend's M.2 SSD 420S delivers optimal reliability. 3D expansion to break through limits - Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance. Perfect for your Ultrabook - Compliant with M.2 form factors Type 2242 and 2280, Transcend's 3D NAND M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 42mm in length, the M.2 SSD 420S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost. Superior transfer speeds - Featuring the M.2 standard (42mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 420S reaches incredible read and write speeds of up to 530MB/s and 480MB/s. When used as a cache, the M.2 SSD 420S provides 1.5 times faster boot time than conventional hard drives. High IOPS to speed up loading times - Dedicated to maximizing high-performance computing, the M.2 SSD 420S features 4k random file read and write speeds up to 75,000 IOPS that deliver incredibly short loading times and almost instant response for heavy graphics and multimedia applications. Store more in less space - The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs. Potent and feature-laden - Despite its extra-small dimensions, the M.2 SSD 420S contains advanced features to enhance the performance of the SSD. Engineered with a RAID engine and featuring built-in SLC caching technology, it utilizes LDPC coding to correct errors and ensure data integrity. TECHNICAL SPECIFICATIONS Dimensions 42 × 22 × 3.58 mm (1.65 x 0.87 x 0.14") Weight 5g (0.18 oz) Type M.2 2242 Interface Bus Interface SATA III 6Gb/s Storage Flash Type 3D NAND flash Capacity 480 GB Operating Environment Operating Temperature 0°C (32°F) ~ 70°C (158°F) Operating Voltage 3.3V±5% Performance Sequential Read/Write (CrystalDiskMark) up to 530/480 MB/s 4K Random Reak/Write (IOmeter) up to 50,000/75,000 IOPS Terabytes Written (TBW) 160 TBW

Budowa: Solid State Module (SSM), M.2 2242
Interfejs: M.2/?B-M-Key (SATA 6Gb/?s)
Odczyt: 530MB/?s
Zapis: 480MB/?s
Odczyt/zapis IOPS 4K: 50k/?75k
Moduły pamięci: 3D-NAND TLC
TBW: 160TB
Prognoza niezawodności: 1 mil. godzin (MTBF)
Kontroler: Silicon Motion SM2246EN, kanałów: 4
Cache: brak
Protokół: AHCI
Pobór mocy: brak danych (maksimum), brak danych (praca), brak danych (stan spoczynku), brak danych (stan uśpienia)
Wymiary: 42x22x3.8mm
Gwarancja producenta: trzy lata


Budowa: Solid State Module (SSM), M.2 2242
Interfejs: M.2/?B-M-Key (SATA 6Gb/?s)
Odczyt: 530MB/?s
Zapis: 480MB/?s
Odczyt/zapis IOPS 4K: 50k/?75k
Moduły pamięci: 3D-NAND TLC
TBW: 160TB
Prognoza niezawodności: 1 mil. godzin (MTBF)
Kontroler: Silicon Motion SM2246EN, kanałów: 4
Cache: brak
Protokół: AHCI
Pobór mocy: brak danych (maksimum), brak danych (praca), brak danych (stan spoczynku), brak danych (stan uśpienia)
Wymiary: 42x22x3.8mm
Gwarancja producenta: trzy lata
