Router xDSL 10xGbE PoE RB5009UG S IN

Parametry techniczne produktu

Ilość w opakowaniu

1.00 szt.

Wbudowana bateria

No

Podatek WEEE

Yes

Klasyfikacja WEE

CL109:6:2017-04-01

Waga brutto

0.95 kg

Waga netto

0.6 kg

Masa własna (kg)

0.35 kg

Głębokość brutto (mm)

120 mm

Szerokość brutto (mm)

65 mm

Wysokość brutto (mm)

550 mm

Objętość (m3)

0.00429 m³

Papier/Karton

315 g

Plastik (bez PET)

35 g

Producer product name

RB5009UG+S+IN

Producer product family

Wired Ethernet Router

Model procesora

88F7040

Całkowita pojemność przechowywania

1 GB

PoE in

802.3af/at

CPU frequency

350-1400 (auto) MHz

Maksymalne zużycie mocy

20 W

Zakres temperatur (eksploatacja)

-40°C to 60°C °C

Napięcie

(PoE in input Voltage) 24-57 V

Liczba portów SFP +

1

Ilość portów Ethernet LAN (RJ-45)

7

Rodzaj oprogramowania

RouterOS (v7 only)

Ilość portów USB

1

Inne funkcje

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

Przycisk reset

Yes

wersja USB

USB 3.0 type A

Maksymalny transfer danych przez bezprzewody LAN

Mbit/s

Prędkość transferu danych przez Ethernet LAN

10/100/1000 Mbit/s

Wi-Fi band

No Wi-Fi

Mesh Support

No

Mobile Broadband

No mobile broadband

MU-MiMO

No

Ilość aten

No antenna

Taktowanie procesora

1400 Mhz

Liczba rdzeni procesora

4

Wi-Fi

No

Gwarancja

12 miesiąc

Certyfikaty

CE, EAC, ROHS

Pojemność pamięci wewnętrznej

1000 MB

Pojemność do przechowywania

1000 MB

Typ pamięci

NAND

Zasilacz sieciowy

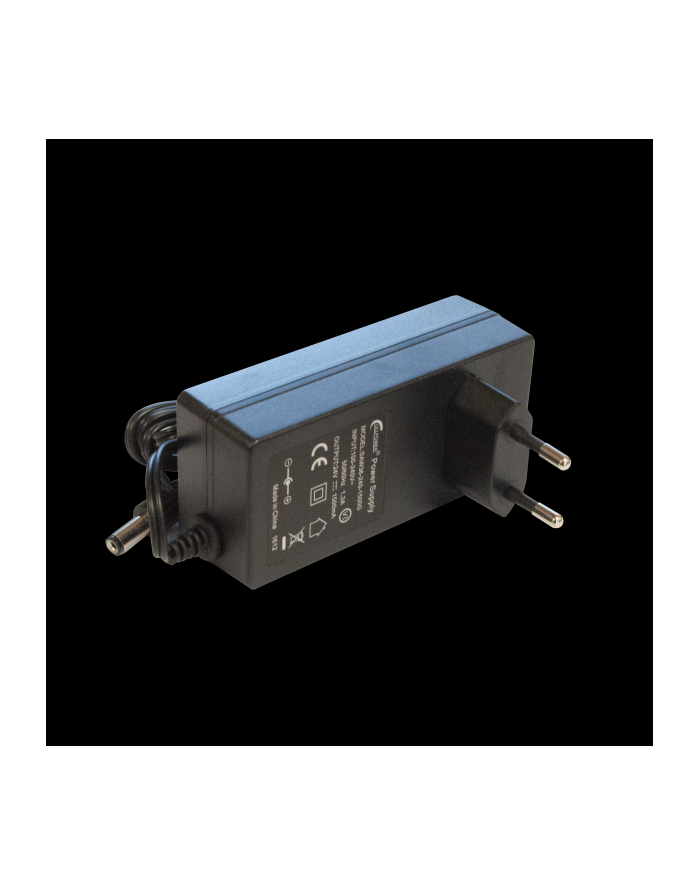

Yes (24V 1.5A power adapter)
