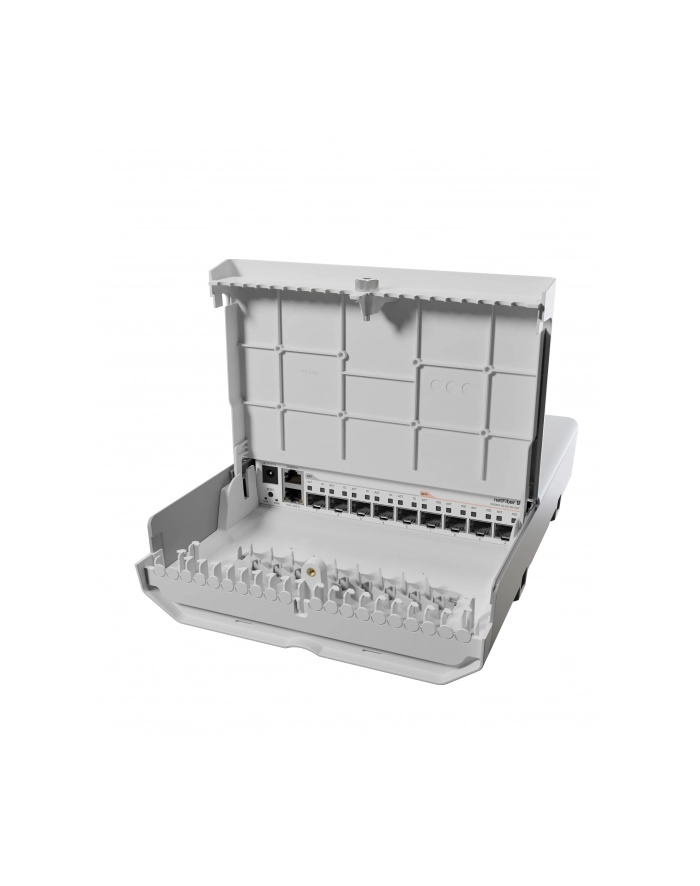

Przełącznik 5xSFP 4 SFP CRS310-1G-5S-4S OUT

Parametry techniczne produktu

Głębokość brutto (mm)

240.00 mm

Wysokość brutto (mm)

60.00 mm

Waga brutto

1.68 kg

Szerokość brutto (mm)

320.00 mm

Waga netto

1.20 kg

Ilość w opakowaniu

1.00 szt.

Papier/Karton

427.00 g

Plastik (bez PET)

48.00 g

Masa własna (kg)

0.48 kg

Objętość (m3)

0.00 m³

Wbudowana bateria

No

Podatek WEEE

Yes

Klasyfikacja WEE

CL109:6:2017-04-01

Rozmiar układu

Pole, Wall or Mast Mountable

Producer product name

CRS310-1G-5S-4S+OUT, NetFiber 9

Producer product family

Cloud Router Switch

POE

PoE passive

Predominant port type

10/100/1000 Mbps (RJ-45)

Ilość portów Gigabit Ethernet

1

Liczba portów SFP +

4

Prędkość transferu danych przez Ethernet LAN

10/100/1000 Mbit/s

Ilość portów Ethernet LAN (RJ-45)

1

Wi-Fi band

No Wi-Fi

Mesh Support

No

Mobile Broadband

No mobile broadband

MU-MiMO

No

Zainstalowany system operacyjny

RouterOS

Inne funkcje

netFiber 9 is a powerful outdoor switch with SFP, SFP+, and Gigabit Ethernet. It features a powerful ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and an advanced Marvell switch-chip that can handle even the heaviest loads. The Gigabit Ethernet port is not just for management purposes. It has a direct connection to the switch chip – so you can enjoy full gigabit speed. This port also supports PoE-in, so you don’t have to rely on the DC jack for powering in tight, hard- to-reach spots. There is a console port, followed by five regular SFP ports and four SFP+ ports for that sweet 10 Gbps networking. This means there might be quite a lot of wires for you to organize at some point. That’s why we designed the case to have some handy little additional features on the bottom of the case to help you keep everything neat and tidy. The sturdy case provides decent protection in dusty environments with occasional splashes of water. Perfect for outdoors with some light coverage – like a roof overhang or a simple cabinet. There is a massive heatsink on the back that serves two purposes. Not only it provides outstanding heat dissipation, it also moves the center of mass towards the side with all the mounting options – keeping the board firm and strong upon installation. The package includes metal hose clamps and screws, so you can attach the netFiber to a pole, wall, or mast right away. netFiber 9 is an amazing tool for anyone working with connections over 100 meters while keeping data loss and ping low. Optic fiber can be a great alternative to copper if you are worried about electromagnetic interference or maybe even tampering and eavesdropping. With 10 ports, a powerful CPU, and a rugged case, netFiber 9 is a real bargain that will make your network management so much easier!

Liczba portów SFP

5

Napięcie

18-57 V V

Model procesora

98DX226S

PoE in

802.3af/at

CPU frequency

800 MHz

Rodzaj oprogramowania

RouterOS

Maksymalne zużycie mocy

16.3 W W

Pojemność do przechowywania

16 MB MB

Zakres temperatur (eksploatacja)

-40°C to 70°C °C

Gwarancja

12 miesiąc
