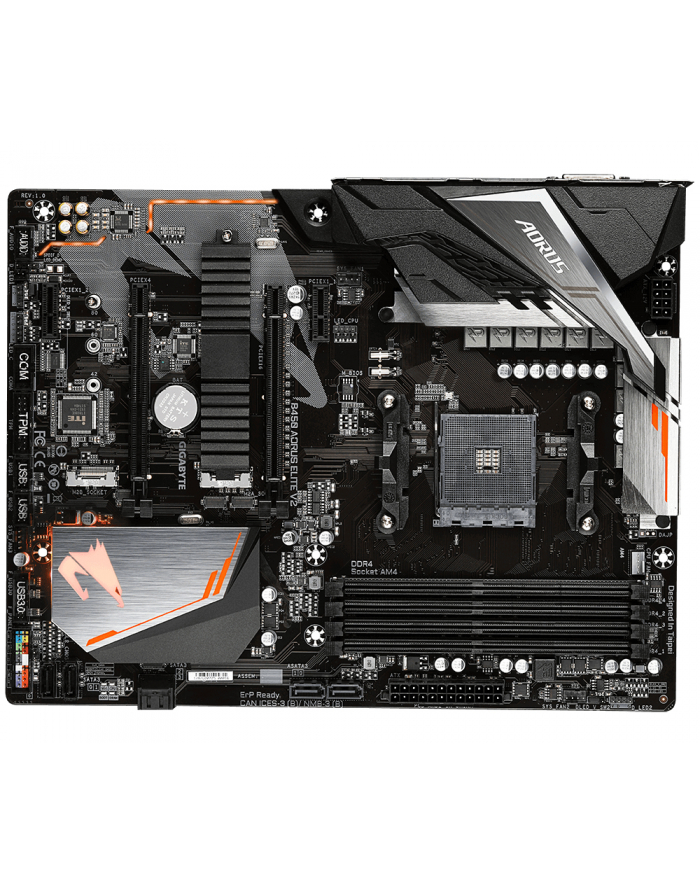

Płyta główna Gigabyte B450 AORUS ELITE V2

B450 AORUS Elite V2 (rev. 1.0) AMD B450 AORUS Motherboard with 8+2 Phases Digital Team Power Design, Dual M.2 with One Thermal Guard, GIGABYTE Gaming LAN with Bandwidth Management, RGB FUSION 2.0, CEC 2019 Ready Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs 8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs HDMI, DVI-D Ports for Multiple Display Integrated I/O Shield of Ultra Durable™ Design Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP APP Center Including EasyTune™ and Cloud Station™ Utilities CEC 2019 Ready, Save Power with a Simple Click TECHNICAL SPECIFICATIONS CPU AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors(Please refer "CPU Support List" for more information.) Chipset AMD B450 Memory - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory- Dual channel memory architecture- Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules- Support for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Audio - Realtek® ALC892 codec- High Definition Audio- 2/4/5.1/7.1-channel- Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. 2 x PCI Express x1 slots(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) Onboard Graphics Integrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz(Note)* Support for HDMI 2.0 version and HDCP 2.2.(Note)Maximum shared memory of 16 GB (Note) Actual support may vary by CPU. Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)- 6 x SATA 6Gb/s connectors- Support for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. USB Chipset:2 x USB 3.1 Gen 1 ports available through the internal USB header8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Integrated in the APU:4 x USB 3.1 Gen 1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip extension cable header1 x RGB (RGBW) LED strip header2 x digital LED strip headers2 x digital LED strip power select jumpers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)1 x serial port header1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring - Voltage detection- Temperature detection- Fan speed detection- Overheating warning- Fan fail warning- Fan speed control* Whether the fan speed control function is supported will depend on the fan you install. BIOS - 1 x 128 Mbit flash- Use of licensed AMI UEFI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information Viewer- Support for Q-Flash- Support for Xpress Install Bundled Software - Norton® Internet Security (OEM version)- Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 23.5cm Remark - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Budowa: ATX
Chipset: AMD B450
VRM: 6 rzeczywistych faz (4+2), 10 wirtualnych faz (8+2)
MOSFETs CPU: brak danych
MOSFETs SoC: brak danych
RAM: 4x DDR4 DIMM, dual PC4-28800U/?DDR4-3600 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 2x PCIe 3.0 x16 (1x x16, 1x x4), 2x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x2, 2280/?2260/?2242)
Złącza zewnętrzne: 1 x DVI-D (iGPU), 1x HDMI 2.0 (iGPU), 4x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8118AS), 6x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (B450), 1x port szeregowy, 1x TPM-Header, 1x S/?PDIF-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin
Header Oświetlenie: 1x 5-Pin RGBW (+12V/?G/?R/?B/?W, max. 2A), 1x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB Combo (5V-12V/?DATA/?GND, max. 2A)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC892)
Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B450)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 2 Strefy (chłodzenie chipsetu, obwód audio)
BIOS: 1x 16MB (128Mb)
Cechy szczególne: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), I/?O-zaślepka zintegrowany, 1x pasywne chłodzenie M.2
