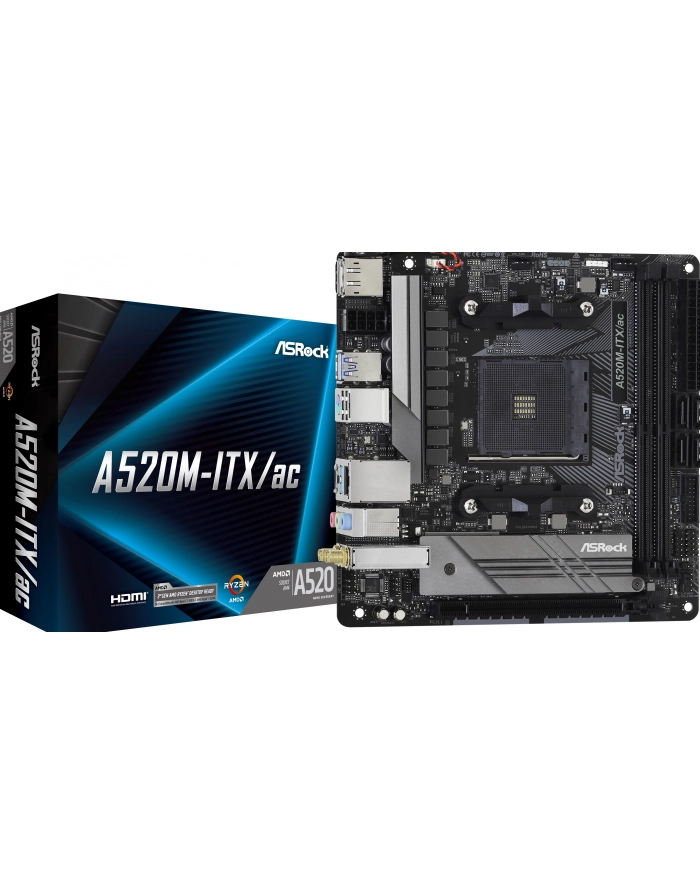

Płyta główna Asrock A520M-ITX/AC
Dane główne
nie stanowią oferty handlowej w rozumieniu przepisów kodeksu cywilnego.
Regulamin
Opis
A520M-ITX/ac Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors) Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16 Graphics Output: DisplayPort, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3) 6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C) Realtek Gigabit LAN Intel® 802.11ac WiFi + BT 4.2 TECHNICAL SPECIFICATIONS Unique Feature ASRock Super Alloy- Premium 60A Power Choke- 50A Dr.MOS- Sapphire Black PCB- High Density Glass Fabric PCBIntel® 802.11ac WiFiASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)*- Digi Power design- 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. Chipset - AMD A520 Memory - Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- Max. capacity of system memory: 64GB**- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports- Supports Microsoft® PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. Slots - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) *AMD Ryzen series CPUs (Matisse) supports PCIe riser cards to extend x8/x8 slotsSupports NVMe SSD as boot disks Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disksSupports ASRock U.2 Kit LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE Wireless LAN - Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 + High speed class II Connector - 1 x RGB LED Header*- 1 x Addressable LED Header**- 1 x CPU Fan Connector (4-pin)***- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)- Supports Surge Protection Rear panel I/O - 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 2 x USB 2.0 Ports (Supports ESD Protection)- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar BIOS - 128Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment Accessories - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5 GHz Antennas Hardware Monitor - Temperature Sensing: CPU, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Operating System - Microsoft® Windows® 10 64-bit Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm- Solid Capacitor design Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Parametry techniczne
Parametry techniczne produktu
- Producent
- Asrock
- Nazwa typu
- Płyty główne
- Opis ogólny
- ASRock A520M-ITX/ac
- Gniazdo procesora
- Socket AM4 (1331)
- Obsługiwane typy procesorów
-
- AMD Ryzen™
- AMD A-series 7th Generation (AM4)
- Uwagi do procesora
-
- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and
- 4000 Series Processors)
- * Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.*
- Format płyty
- Mini-ITX
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Chipset płyty głównej
- AMD A520
- Ilość złącz pamięci DDR3
- 0
- Ilość złącz pamięci DDR4
- 2
- Maksymalna wielkość pamięci
- 64 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
-
- DDR4-2133
- DDR4-2400
- DDR4-2666
- DDR4-2933
- DDR4-3200
- DDR4-3466 (OC)
- DDR4-3600 (OC)
- DDR4-3733 (OC)
- DDR4-3800 (OC)
- DDR4-3866 (OC)
- DDR4-4000 (OC)
- DDR4-4133 (OC)
- DDR4-4200 (OC)
- DDR4-4266 (OC)
- DDR4-4333 (OC)
- DDR4-4400 (OC)
- DDR4-4533 (OC)
- DDR4-4600 (OC)
- DDR4-4666 (OC)
- DDR4-4733 (OC)
- Uwagi do pamięci RAM
-
- Supports Extreme Memory Profile (XMP) memory modules
- 15µ Gold Contact in DIMM Slots
- *Please refer to Memory Support List on ASRock's website for more info *
- Zintegrowany kontroler ATA (IDE)
- Brak
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x Ultra M.2
- Uwagi do kontrolera SATA
-
- 4 x SATA3 6.0 Gb/s Connectors, support RAID
- Supports NVMe SSD as boot disks
- Supports ASRock U.2 Kit
- Wbudowana karta graficzna
- Brak lub AMD Radeon R-Series/Vega (zależy od procesora)
- Gniazda karty graficznej
-
- HDMI
- DisplayPort
- Uwagi do karty graficznej
-
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- The Max shared memory 16GB requires 32GB system memory installed.
- Actual support may vary by CPU
- Supports DP 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
- Zintegrowana karta dźwiękowa
- Realtek® ALC 887 6-Channel High Definition Audio CODEC
- Gniazda karty dźwiękowej
-
- Wewnętrzne gniazdo audio przedniego panelu
- 3x Audio Jack
- Złącza PCI Express x16
- 1
- Złącza PCI Express x4
- 0
- Złącza PCI Express x1
- 0
- Złącza PCI 32-bit/33MHz
- 0
- Uwagi do złącz PCI
-
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- * Supports NVMe SSD as boot disks *
- Port LAN
- 1x Gigabit LAN 100/1000 Mb/s (Realtek® 8111H)
- Uwagi do karty sieciowej
-
- Obsługa Wake-On-LAN, PXE, Lightning/ESD Protection
- Obsługa Energy Efficient Ethernet 802.3az
- Maksymalna ilość portów USB 2.0
- 4
- Maksymalna ilość portów USB 3.x
- 6
- Porty USB na panelu tylnym
- 2x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 Type-C
- Gniazda USB na płycie głównej
- 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac
- Port Bluetooth
- Bluetooth V4.2
- Port PS/2
- Port combo klawiatury/myszy PS/2
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (4-pin)
- Wymiary [S x W] (mm)
- 170 x 170
- Opakowanie
- BOX
- Wyposażenie dodatkowe
-
- Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables,
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- Informacje dodatkowe
- OS: Microsoft® Windows® 10 64-bit
