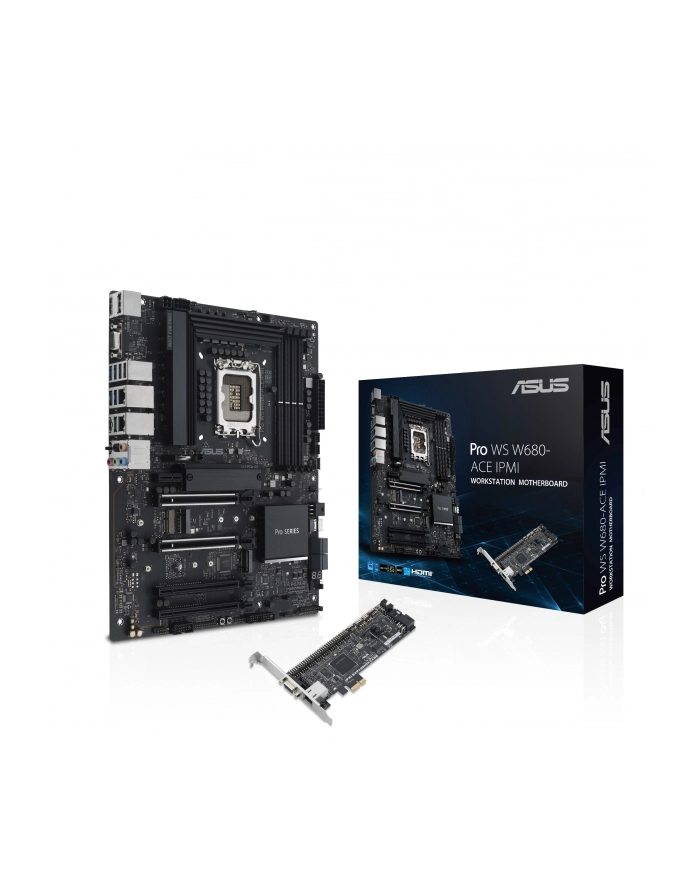

Płyta ASUS Pro WS W680-ACE IPMI 90MB1DN0-M0EAY0

Pro WS W680-ACE IPMI Intel® W680 (LGA 1700) ATX motherboard, PCIe® 5.0, DDR5, IPMI expansion card, dual Intel® 2.5 Gb Ethernet, PCIe 4.0 M.2, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI®, DisplayPort and VGA Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Bundle with IPMI expansion card: Equips with a dedicated Ethernet controller to BMC chip to provide the intelligence for its IPMI architecture Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability Model Pro WS W680-ACE IPMI CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Refer to www.asus.com for CPU support list.Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Refer to www.asus.com for CPU support list. Chipset Intel® W680 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 ECC and Non-ECC Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort**1 x HDMI® port*** 1 x VGA port* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 8K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors*- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)Intel® W680 Chipset- 2 x PCIe 3.0 x16 slots (supports x4 mode)- 1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*Intel® 13th & 12th Gen Processors- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® W680 Chipset**- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)- 4 x SATA 6Gb/s ports- 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)**** Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.*** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately. Ethernet 2 x Intel® 2.5Gb EthernetASUS LANGuard Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)**Wi-Fi module is sold separately. USB Rear USB (Total 8 ports)- 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)- 4 x USB 3.2 Gen 1 ports (4 x Type-A)- 2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports- 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback"Audio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers- Unique de-pop circuit Back Panel I/O Ports -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)-4 x USB 3.2 Gen 1 ports (4 x Type-A)-2 x USB 2.0 ports (2 x Type-A)-1 x DisplayPort-1 x HDMI® port-1 x VGA port-2 x Intel® 2.5Gb Ethernet ports-5 x Audio jacks-1 x BIOS FlashbackTM button Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin W_PUMP+ header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector1 x 6-pin PCIe Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s ports1 x SlimSAS portUSB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x LPT header1 x T-sensor1 x Clear CMOS header1 x COM Port header1 x BMC Header1 x Front Panel Audio header (AAFP)1 x Start button1 x Flexkey button1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x M.2 slot (Key E)1 x LPT_P80 Switch1 x Thunderbolt™ header Special Features ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- Q-Code- M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- CPU Socket lever protector- SafeDIMM- SafeSlot- BIOS FlashBack™ button- BIOS FlashBack™ LEDBespoke Motherboard Design & Business Focused Features- 24/7 Reliability Software Features ASUS Exclusive SoftwareArmoury Crate- Fan Xpert 4- Power SavingASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARIT Management software supported- ASUS Control Center Express(ACCE)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x Q-connector1 x M.2 Rubber Packages2 x Screw package for M.2 SSD1 x Screw package for M.2 Key E1 x I/O ShieldIPMI Expansion Card and related accessories1 x IPMI expansion card1 x BMC cable1 x Power On/Off cable1 x Reset cable1 x USB 2.0 cable1 x IPMI Expansion Card user guideDocumentation1 x User guide1 x ACC Express Activation Key CardCables2 x SATA 6Gb/s cablesMiscellaneous1 x Q-connector1 x M.2 Rubber Packages2 x Screw package for M.2 SSD1 x Screw package for M.2 Key E1 x I/O ShieldIPMI Expansion Card and related accessories1 x IPMI expansion card1 x BMC cable1 x Power On/Off cable1 x Reset cable1 x USB 2.0 cable1 x IPMI Expansion Card user guideDocumentation1 x User guide1 x ACC Express Activation Key Card Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS PRO WS W680-ACE IPMI. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, NVMe, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: Intel
