Manhattan 207683 przedłużacz AV Nadajnik i odbiornik AV Czarny
Dane główne
nie stanowią oferty handlowej w rozumieniu przepisów kodeksu cywilnego.
Regulamin
Opis
1080p HDMI KVM over IP Extender Kit

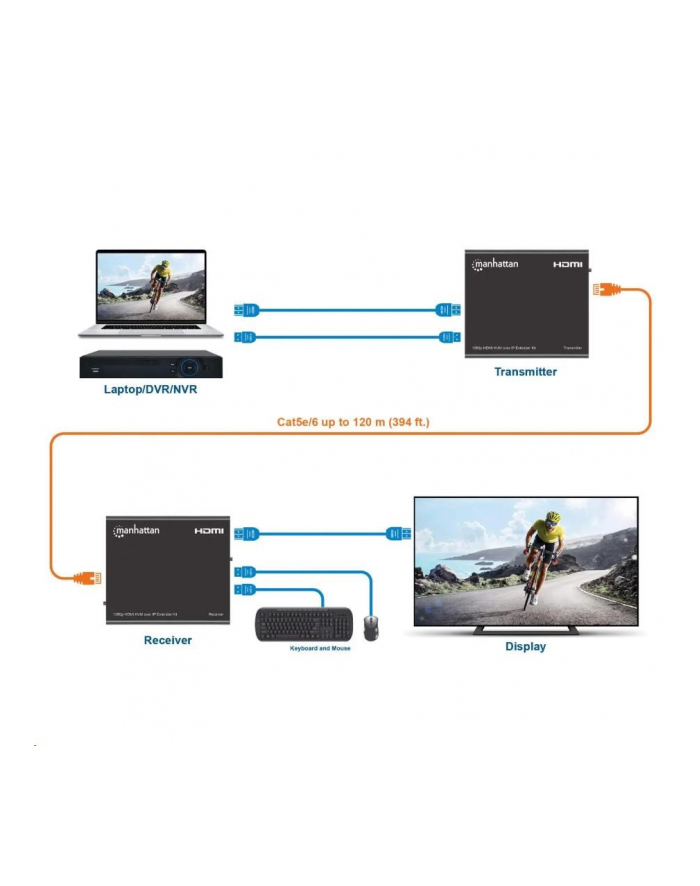

The Manhattan 1080p HDMI KVM over IP Extender Kit lets you access any computer (or other HDMI source) from a keyboard, mouse and display up to 120 m (394 ft.) away. You can either make a direct connection through a single RJ45 Ethernet cable (Cat6 or higher recommended for maximum range and performance) or you connect it to a switch in your existing network to overcome distance limitations.
Versatile Connectivity OptionsUse this HDMI over IP Extender with KVM function as a regular HDMI extender or as an HDMI KVM switch. As an extender, the HDMI and Ethernet ports can send up to 1080p@60Hz (1920 × 1080) HDMI from your Blu-ray player, NVR/DVR, set-top box or game console to a remote display. There's an additional HDMI loop-out port on the transmitter so you can connect a display near the source for easier setup, while the IR feature lets you control the source remotely. As a full-control HDMI KVM switch, both modules also feature USB-A ports that connect your PC, laptop or MacBook® to the transmitter and your keyboard/mouse to the receiver. Since the HDMI KVM extender is independent of your OS, you can use any computer you choose as your remote workstation. This flexibility makes it ideal for in-store POS (Point of Sale) systems and digital cash desks with touchscreens. Included in the package are four mounting brackets that let you tidily install its rugged metal housing on the wall or ceiling.
Controls a remote HDMI and USB-A equipped computer from a local display, keyboard and mouse
Extends HDMI and USB signals up to 120 m (394 ft.) over a single Cat6 Ethernet Cable or to an unlimited range over an IP-enabled network
Resolutions up to Full HD 1080p@60Hz (1920 × 1080)
Ideal for POS (Point of Sale) systems in stores or digital cash desks with touchscreens
Reset button on both units to adjust signal to cable length
Plug and play - requires no software installation or configuration
HDMI loop-out on transmitter to connect a display near the source for easier setup
Supports 3D Video
Works in existing network infrastructures via TCP/IP
EDID pass-through for automatic image optimization through configuration from your computer over your network
Includes infrared (IR) blaster and receiver for remote control of the source device
Supports MJPEG protocol for video compression
Supports lossless LPCM 8 channel uncompressed audio formatting and 7.1 surround sound
Rugged metal housing for maximum durability
Includes mounting brackets for a tidy installation on wall or ceiling
HDMI, USB-A and Ethernet cables not included; available separately from Manhattan and Intellinet Network Solutions
For additional distance capabilities, use a 15 m (50 ft.) Manhattan High Speed HDMI Cable with Ethernet on both transmitter and receiver
Works independently of computer operating systems
Three-year warranty
TECHNICAL SPECIFICATIONS
Standards and Certifications
CERoHSFCCHDMI 1.3HDCP 1.4USB 2.0
General
Supported resolutions: 480p/720p/1080i/1080p (Cat6 or higher Ethernet cable recommended for maximum distance and resolution)Max. video bandwidth: 1.65 Gbps/165MHz per channel (4.95 Gbps all channels)
Connections/buttons
Receiver- 1 x HDMI female 19-pin- 2 x USB-A female 4-pin (for mouse and keyboard)- 1 x DC 5.0 V input- 1 x RJ45 female- 1 x 3.5 mm IR female- Reset button- USB switch buttonTransmitter- 2 x HDMI female 19-pin (one loop-out for local display)- 1 x USB-A female 4-pin (for computer)- 1 x DC 5.0 V input- 1 x RJ45 female- 1 x 3.5 mm IR female- Reset button
LEDs
PowerLink/activityUSB connections
Electrical
Two DC power adapters, 1.2 m (4 ft.) cables- Input: 100.0 - 240.0 VAC, 50 - 60 Hz; 0.4 A- Output: 5.0 VDC; 1.0 APower consumption max.: 3.5 W (transmitter) / 2.0 W (receiver)
Phycical
Dimensions per module (L x W x H): 90 x 150 x 26 mm (3.54 x 5.91 x 1.02 in.)Weight per module: 239 g (8.43 oz.)Housing: metal
Operating Environment
Operation temperature: 0 - 50°C (32 - 122°F)Storage temperature: -20 - 60°C (-4 - 140°F)Humidity (non-condensing): 5 - 90%
Package Contents
1080p HDMI KVM over IP Extender KitTwo DC power adapters, 1.2 m (4 ft.) cablesTwo IR connection cables, 1.5 m (5 ft.)Four mounting brackets and eight screws for wall or ceiling mountingInstructions
Manhattan 207683. Model: Nadajnik i odbiornik AV, Maks. rozdzielczość: 1920 x 1080 px, Obsługiwane typy kabli: Cat6. Obsługiwany typ USB: USB Typu-A. Napięcie wejściowe AC: 100 - 240 V, Częstotliwość wejściowa AC: 50/60 Hz, Prąd wejściowy: 0.4 A. Szerokość produktu: 150 mm, Głębokość produktu: 90 mm, Wysokość produktu: 26 mm. Rodzaj opakowania: Pudełko
Parametry techniczne
Parametry techniczne produktu
- Model
- Nadajnik i odbiornik AV
- Maks. Rozdzielczość
- 1920 x 1080 px
- Obsługiwane typy kabli
- Cat6
- Diody LED
- Działanie, Link, Zasilanie
- Obsługiwane tryby wideo
- 480p, 720p, 1080i, 1080p
- Szerokość pasma
- 165 Mhz
- HDCP
- Tak
- Materiały
- Metal
- Wersja HDCP
- 1.4
- Kolor produktu
- Czarny
- Certyfikaty
-
- CE
- RoHS
- FCC
- HDMI in
- 1
- Liczba wyjść HDMI
- 2
- Wersja HDMI
- 1.3
- Ilość portów USB
- 3
- wersja USB
- 2.0
- Obsługiwany typ USB
- USB Typu-A
- Gniazdko wyjścia DC
- Tak
- Napięcie wejściowe AC
- 100 - 240 V
- Częstotliwość wejściowa AC
- 50/60 Hz
- Prąd wejściowy
- 0.4 A
- Prąd wyjściowy
- 1 A
- Zużycie prądu (nadajnik) (max)
- 3,5 W
- Zużycie prądu (odbiornik) (max)
- 2 W
- Zakres temperatur (eksploatacja)
- 0 - 50 °C
- Zakres temperatur (przechowywanie)
- -20 - 60 °C
- Zakres wilgotności względnej
- 5 - 90%
- Szerokość produktu
- 150 mm
- Głębokość produktu
- 90 mm
- Wysokość produktu
- 26 mm
- Waga produktu
- 239 g
- Rodzaj opakowania
- Pudełko
- Zasilacz sieciowy
- Tak
- Przewody
- Podczerwień
- Podręcznik użytkownika
- Tak
- Uchwyty mocowania dołączone
- Tak
