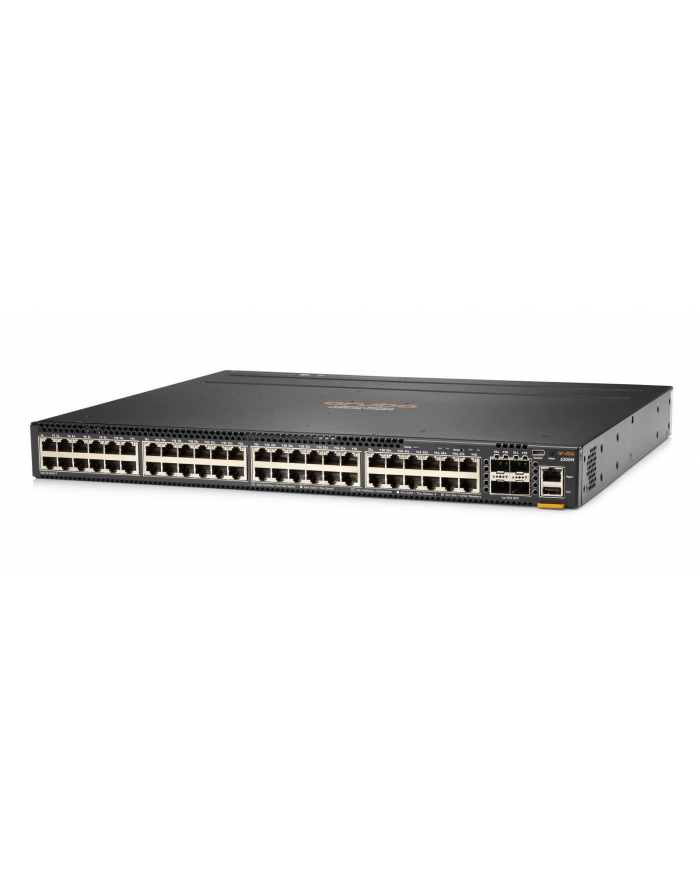

hewlett packard enterprise Switch ARUBA 6000 48G CL4 4SFP R8N85A

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch Specifications Aruba 6000 48G 4SFP Switch (R8N86A) Description 48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port Power supplies Fixed power supply Fans Fixed fans Physical characteristics Dimensions (H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74") Configuration Weight 3.42 kg (7.54 lbs) Additional Specifications CPU Dual Core ARM Cortex A9 @ 1016 Mhz Memory and Flash 4 GB DDR3 16 GB eMMC Packet Buffer 12.38MB (4.5MB Ingress/7.875MB Egress) Performance Model Switching Capacity 104 Gbps Model Throughput Capacity 77.3 Mpps Average Latency (LIFO-64- bytes packets) 1 Gbps: 1.9 µSec Switched Virtual Interfaces (dual stack) 16 IPv4 Host Table (ARP) 1,024 IPv6 Host Table (ND) 512 IPv4 Unicast Routes 512 IPv6 Unicast Routes 512 MAC Table Capacity 8,192 IGMP Groups 512 MLD Groups 512 IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256 Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) Aruba 6000 48G 4SFP Switch (R8N86A) Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) Environment Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) Operating Relative Humidity 15% to 95% at 104°F (40°C) non-condensing 15% to 95% at 104°F (40°C) non-condensing 15% to 95% at 104°F (40°C) non-condensing Non-Operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) Non-Operating Storage Relative Humidity 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing Max Operating Altitude 10000 feet (3 km) Max 10000 feet (3 km) Max 10000 feet (3 km) Max Max Non-Operating Altitude 15000 feet (4.6 km) Max 15000 feet (4.6 km) Max 15000 feet (4.6 km) Max Acoustic Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB Primary Airflow Side-to-side Side-to-side Side-to-side Electrical Characteristics Frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz AC Voltage 100-127 VAC / 200-240 VAC 100-127 VAC / 200-240 VAC 100-127 VAC / 200-240 VAC Current 4.9 A / 2.4 A 0.8 A / 0.5 A 4.6 A / 2.3 A Power Consumption (230 VAC) Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W Idle: 20.6W Max Power (w/o PoE): 44.2W Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W Safety UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 Emissions VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) Aruba 6000 48G 4SFP Switch (R8N86A) Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) Lasers EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) Immunity Generic CISPR 24 / CISPR 35 CISPR 24 / CISPR 35 CISPR 24 / CISPR 35 EN EN 55024:2010 / EN 55035:2017 EN 55024:2010 / EN 55035:2017 EN 55024:2010 / EN 55035:2017 ESD IEC 61000-4-2 IEC 61000-4-2 IEC 61000-4-2 Radiated IEC 61000-4-3 IEC 61000-4-3 IEC 61000-4-3 EFT/Burst IEC 61000-4-4 IEC 61000-4-4 IEC 61000-4-4 Surge IEC 61000-4-5 IEC 61000-4-5 IEC 61000-4-5 Conducted IEC 61000-4-6 IEC 61000-4-6 IEC 61000-4-6 Power frequency magnetic field IEC 61000-4-8 IEC 61000-4-8 IEC 61000-4-8 Voltage dips and interruptions IEC 61000-4-11 IEC 61000-4-11 IEC 61000-4-11 Harmonics EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2 Flicker EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3 Mounting and Enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
