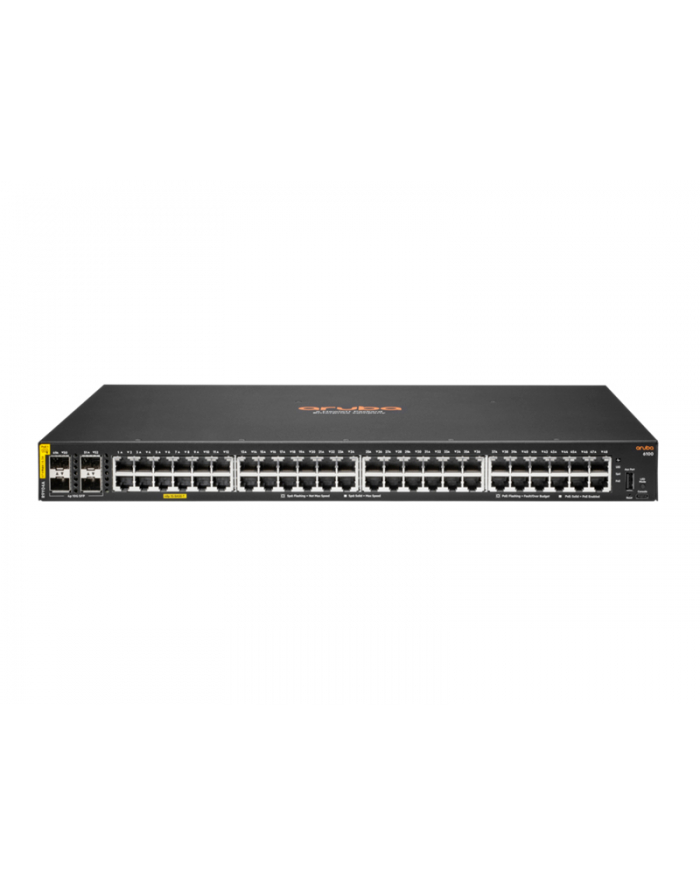

hewlett packard enterprise HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch

Aruba 6100 48G CL4 4SFP+ 740W Sw (R9Y04A) Description 48x ports 10/100/1000BASE-T Class 4 PoE Ports Supports PoE Standards IEEE 802.3af, 802.3at 4x 1/10G SFP Ports 1x USB-C console port 1x USB Type-A Host port Power supplies Fixed power supply (950 W) Fans Fixed fans Physical characteristics Dimensions (H) 4.39 cm x (W) 44.25 cm x (D) 32.42 cm (1.73" x 17.42" x 12.77") Configuration Weight 4.7 kg (10.36 lbs) Additional Specifications CPU Dual Core ARM CortexTM A9 @ 1016 MHz Memory and Flash 4 GB DDR3 16GB eMMC 128 MB Flash ROM Packet Buffer 12.38MB and 4.5MB Ingress/7.875MB Egress Performance Model Switching Capacity 176 Gbps Model Throughput Capacity 98.6 Mpps Average Latency (LIFO-64-bytes packets) 1Gbps: 1.9 µs 10Gbps: 1.8 µs Switched Virtual Interfaces (dual stack) 16 IPv4 Host Table (ARP) 1,024 IPv6 Host Table (ND) 512 IPv4 Unicast Routes 512 IPv6 Unicast Routes 512 MAC Table Capacity 8,192 IGMP Groups 512 MLD Groups 512 IPv4/IPv6/MAC ACL Entries (ingress) 256/128/256 Environment Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft derate -1°C for every 1000 ft from 5000 ft to 10000 ft Operating Relative Humidity 5% to 95% at 104°F (40°C) non-condensing Non-Operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft Non-Operating Storage Relative Humidity 5% to 90% @ 149°F (65°C) non-condensing Max Operating Altitude 10000 feet (3 km) Max Max Non-Operating Altitude 15000 feet (4.6 km) Max Acoustic Sound Power, LWAd = 4.95 Bel Sound Pressure, LpAm (Bystander) = 35.91 dB Primary Airflow Side-to-side Electrical Characteristics Frequency 50 / 60 Hz AC Voltage 100-127 VAC / 200-240 VAC Current 9.2 A / 4.9 A Power Consumption (230 VAC) Idle: 37.5W Max Power (w/o PoE): 49.7W Max Power (w/ PoE): 890W Safety IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed., Emissions VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A Lasers IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) Immunity Generic CISPR 35: 2016 EN EN 55035:2017 / A11:2020 ESD IEC 61000-4-2 Radiated IEC 61000-4-3 EFT/Burst IEC 61000-4-4 Surge IEC 61000-4-5 Conducted IEC 61000-4-6 Power frequency magnetic field IEC 61000-4-8 Voltage dips and interruptions IEC 61000-4-11 Harmonics IEC / EN 61000-3-2 Flicker IEC / EN 61000-3-3 Mounting and Enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
