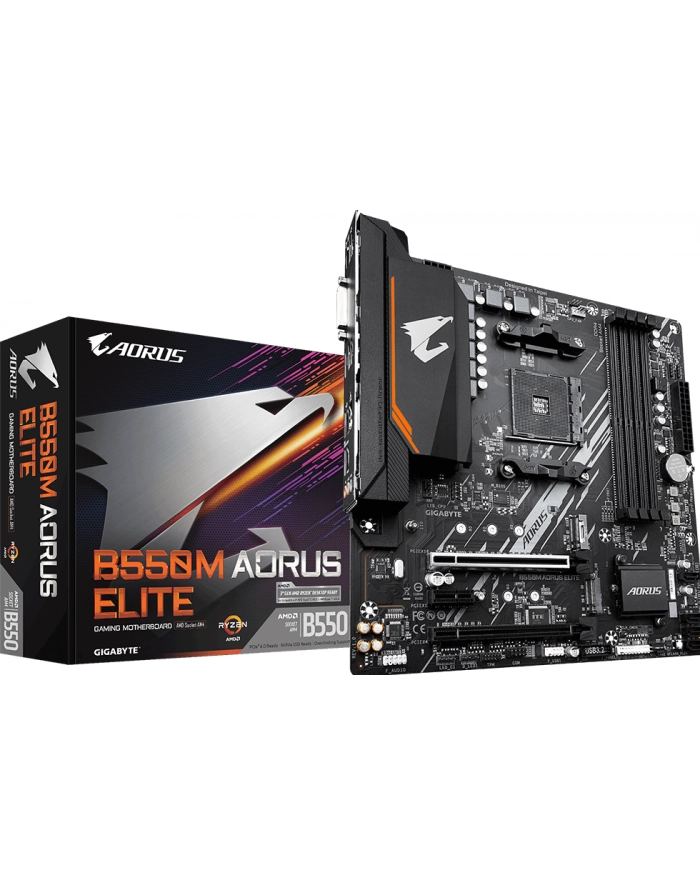

GIGABYTE B550M AORUS ELITE AM4 DDR4 2xM.2 4xSATA HDMI DVI mATX MB

B550M AORUS ELITE AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GIGABYTE Exclusive 8118 Gaming GbE LAN Rear HDMI & DVI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design TECHNICAL SPECIFICATIONS CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors(Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryAMD Ryzen™ 5000 series processors:Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3rd Gen AMD Ryzen™ Processors:Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Expansion Slots 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 mode Storage Interface 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:Supporting SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10 USB CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button Back Panel Connectors 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install Bundled Software Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Budowa: µATX
Socket: AMD AM4
Chipset: AMD B550
VRM: 8 rzeczywistych faz (5+3), kontroler PWM: RAA 229004 (max. 8 rzeczywistych faz)
MOSFETs CPU: 5x 46A 4C10N/?10x 4C06N
MOSFETs SoC: 3x 46A 4C10N/?4C06N
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x2/?SATA, 2280/?2260/?2242)
Złącza zewnętrzne: 1 x DVI-D (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8118AS), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 1x USB 2.0 Header (480Mb/?s, 2x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 3x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
Przyciski/przełączniki: USB BIOS Flashback/?Q-Flash Plus (wewn.)
Audio: 7.1 (Realtek ALC887)
Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: brak
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, I/?O-zaślepka zintegrowany, obsługa ECC


Budowa: µATX
Socket: AMD AM4
Chipset: AMD B550
VRM: 8 rzeczywistych faz (5+3), kontroler PWM: RAA 229004 (max. 8 rzeczywistych faz)
MOSFETs CPU: 5x 46A 4C10N/?10x 4C06N
MOSFETs SoC: 3x 46A 4C10N/?4C06N
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x2/?SATA, 2280/?2260/?2242)
Złącza zewnętrzne: 1 x DVI-D (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8118AS), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 1x USB 2.0 Header (480Mb/?s, 2x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 3x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
Przyciski/przełączniki: USB BIOS Flashback/?Q-Flash Plus (wewn.)
Audio: 7.1 (Realtek ALC887)
Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: brak
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, I/?O-zaślepka zintegrowany, obsługa ECC


Gigabyte B550M AORUS ELITE. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Pamięć karty graficznej podsystemu graficznego: 16000 MB, Maks. rozdzielczość: 4096 x 2160 px. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet
