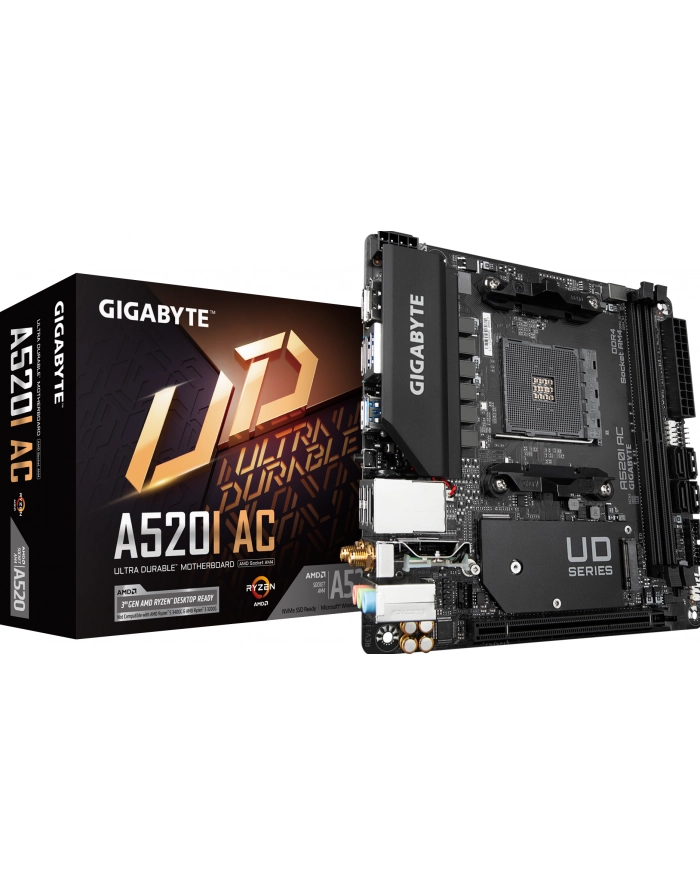

GIGABYTE A520I AC Socket AM4 AMD A520 DDR4 Micro ITX

A520I AC AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs Direct 6 Phases Digital VRM Solution with 55A DrMOS Ultra-Fast NVMe PCIe 3.0 x4 M.2 Onboard Intel® Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management DisplayPort, Dual HDMI for for Multiple Display RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors(Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryAMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors:Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for up to 3 displays at the same timeMaximum shared memory of 16 GB Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Wireless Communication module Intel® Wi-Fi AC 3168WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 4.2Support for 11ac wireless standard and up to 433 Mbps data rate* Actual data rate may vary depending on environment and equipment. Expansion Slots Integrated in the CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Storage Interface Integrated in the CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10 USB Integrated in the CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x DisplayPort2 x HDMI ports4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 ports2 x SMA antenna connectors (1T1R)3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install Bundled Software Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Budowa: mini-ITX
Chipset: AMD A520
RAM: 2x DDR4 DIMM, dual PC4-42400U/?DDR4-5300 (OC), max. 64GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260), 1x M.2/?E-Key (PCIe, 2230, zajęty przez moduł WiFi+BT)
Złącza zewnętrzne: 2x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8118AS), 3x wtyczka jack
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 1x USB 2.0 Header (2x USB 2.0), 4x SATA 6Gb/s (A520), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 1x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
Przyciski/przełączniki: USB BIOS Flashback/?Q-Flash Plus (zewn.)
Audio: 7.1 (Realtek ALC887)
Onboard-Grafika: iGPU
Wireless: WLAN 802.11a/?b/?g/?n/?ac (1x1, Intel 3168), Bluetooth 4.2
Poziom RAID: 0/?1/?10 (A520)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: brak
BIOS: 1x 16MB (128Mb)
Cechy szczególne: Audio+solid capacitors, 1x pasywne chłodzenie M.2, obsługa ECC


Budowa: mini-ITX
Chipset: AMD A520
RAM: 2x DDR4 DIMM, dual PC4-42400U/?DDR4-5300 (OC), max. 64GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260), 1x M.2/?E-Key (PCIe, 2230, zajęty przez moduł WiFi+BT)
Złącza zewnętrzne: 2x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8118AS), 3x wtyczka jack
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 1x USB 2.0 Header (2x USB 2.0), 4x SATA 6Gb/s (A520), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 1x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
Przyciski/przełączniki: USB BIOS Flashback/?Q-Flash Plus (zewn.)
Audio: 7.1 (Realtek ALC887)
Onboard-Grafika: iGPU
Wireless: WLAN 802.11a/?b/?g/?n/?ac (1x1, Intel 3168), Bluetooth 4.2
Poziom RAID: 0/?1/?10 (A520)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: brak
BIOS: 1x 16MB (128Mb)
Cechy szczególne: Audio+solid capacitors, 1x pasywne chłodzenie M.2, obsługa ECC


Gigabyte A520I AC. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 64 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA III. Maks. rozdzielczość: 5120 x 2880 px. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet, Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
