Club 3D CSV-1382 huby i koncentratory

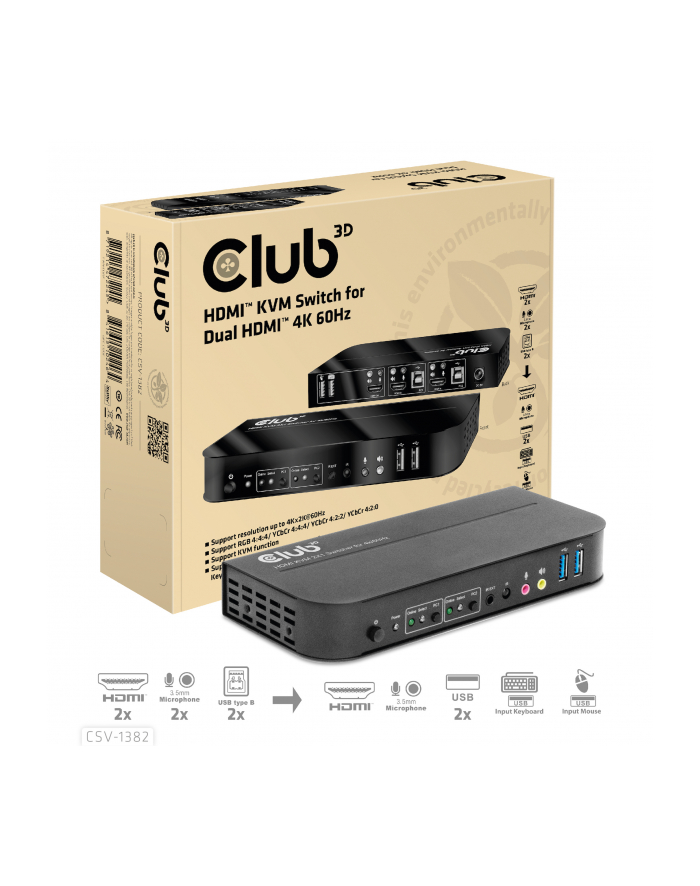

HDMI KVM SWITCH FOR DUAL HDMI 4K 60Hz The CSV-1382 is a high performance HDMI™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any HDMI™ source to any HDMI™ supported display. This HDMI™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function. Support resolution up to 4Kx2K@60Hz Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0 Support KVM function Support a HDMI™ display and a set of Keyboard and Mouse to control two PCs with HDMI™ ports Support 6Gbps per channel (18Gbps all channels) bandwidth Support 12bit per channel (36bit all channels) deep color Support HDCP 2.2/1.4 Support 3D Support HDR Support infrared remote control function Support for switching LED indications TECHNICAL SPECIFICATIONS Supported resolution • Max Resolution: 3840*2160@60Hz, 4096*2160@60Hz Input • PC 1: HDMI™ + USB + Mic + Stereo Port• PC 2: HDMI™ + USB + Mic + Stereo Port• 3.5mm Mic Input port• DC 5V - Power Supply Unit Output • 1x HDMI™ Female• 1x MIC• 1x Stereo Jack• 1x USB Mouse connection• 1x USB Keyboard connection• 3.5mm Stereo port OS Support • Windows/Linux/Apple Mac OS In the box • CSV-1382 HDMI™ KVM Switch x 1• External Power Supply 5V 3A x 1• IR Remote Control x1• IR Extender x1• USB Type B Male to USB A Male cable x2• Quick Installation Guide Other info • Box size: 23 x 21 x 6.5 cm / 9.05 x 7.08 x 2.56"• Device size: 17.8 x7.5 x 2.6 cm/ 7.0 x 2.95 x 1.02"• Box Weight: 147 gr / 5.185 oz• Device Weight: 365 gr / 12.875 oz• USB Type B Male cable Weight: 54 gr / 1.91 oz - 2x 108 gr / 3.81 oz• IR Remote Control incl. battery Weight: 16 gr / 0.57 oz• IR Extender Weight: 33 gr / 1.16 oz• Power Adapter Weight: 107 gr / 3.77 oz• LDPE Bag Weight: 6 gr / 0.21 oz• Total Weight: 783 gr / 27.62 oz• Meets ROHS, FCC, and CE EMI requirements In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

CLUB3D CSV-1382
