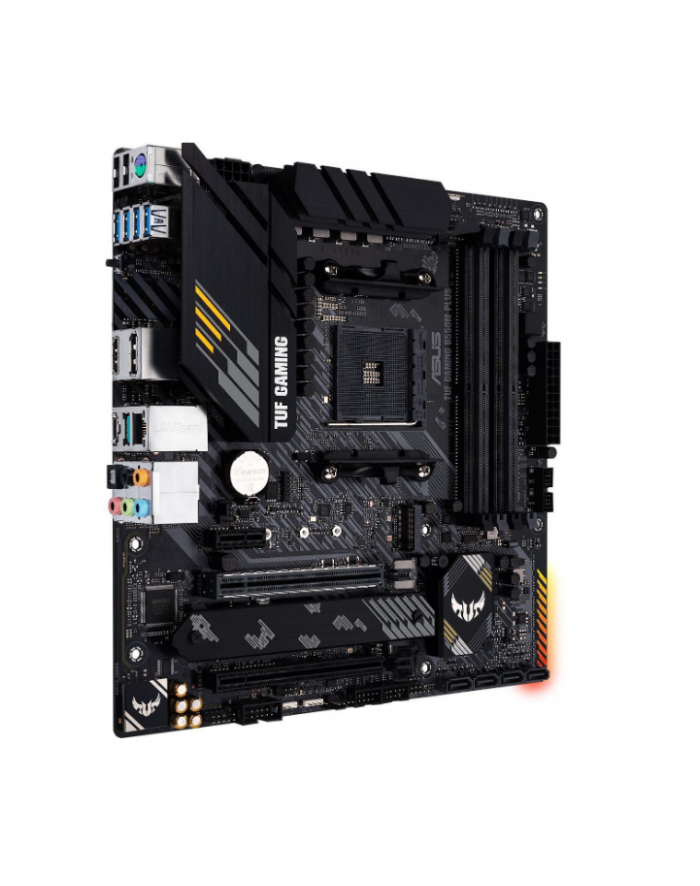

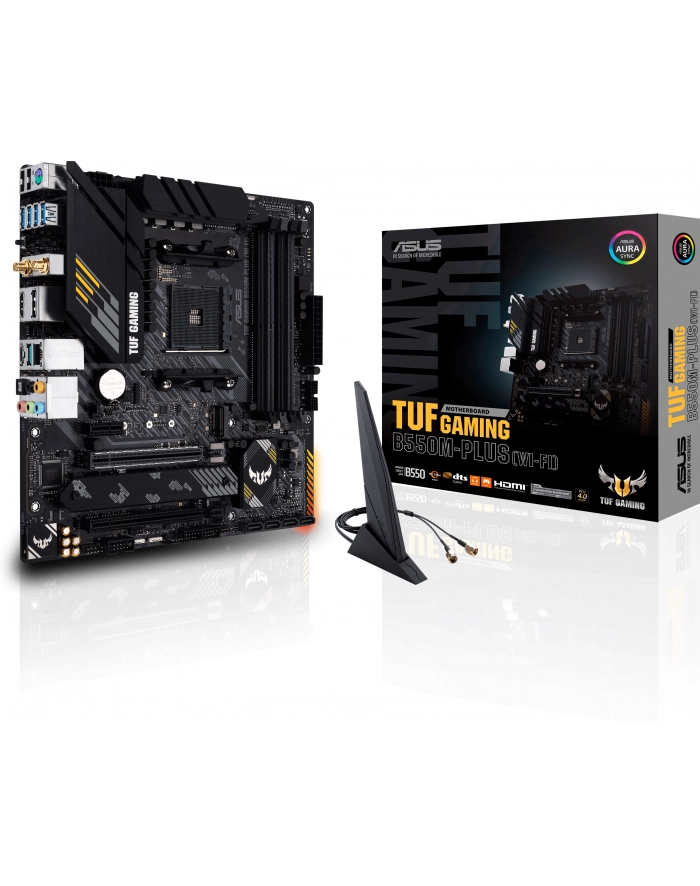

ASUS TUF GAMING B550M-PLUS AM4 DDR4 2xM.2 6xSATA PCIe 4.0 x16 mATX

TUF GAMING B550M-PLUS (WI-FI) AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Intel® WiFi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support Made for online gaming: Intel® WiFi 6, 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology AI noise-cancelling microphone: Provides crystal-clear in-game voice communication TECHNICAL SPECIFICATIONS CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors ** Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *ECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ) Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode) *11 x PCIe 3.0 x1 *1* Support PCIe bifurcation for RAID on CPU function. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LAN Realtek RTL8125B 2.5Gb EthernetTUF LANGuard Wireless Data Network Intel® Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interface Bluetooth Bluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors USB Ports Rear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s)1 x ASUS Wi-Fi Module Internal I/O Ports 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector Accessories User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x Wi-Fi moving antenna1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note *1 PCIEX16_2 will run x2 mode when PCIEX1 is used.

Budowa: µATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 10 wirtualnych faz (8+2)
MOSFETs CPU: 8x
MOSFETs SoC: 2x
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


Budowa: µATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 10 wirtualnych faz (8+2)
MOSFETs CPU: 8x
MOSFETs SoC: 2x
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


ASUS TUF GAMING B550M PLUS (WI-FI). Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA. Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax). Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD, Układ płyty głównej: AMD B550
