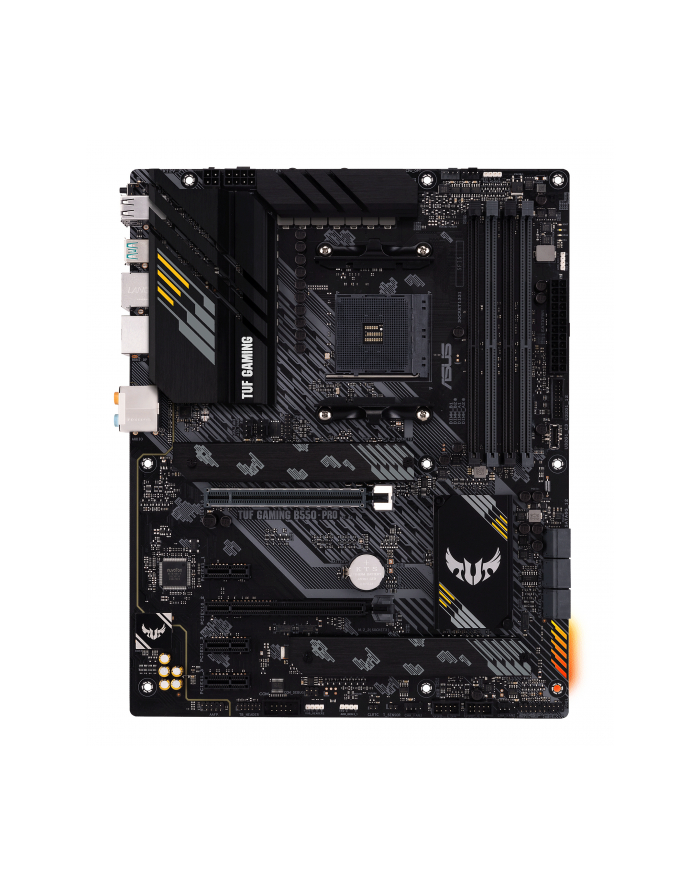

ASUS TUF GAMING B550-PRO AM4 B550 4xDIMM DDR4Up to 128GB 2xM.2 4xSATA 6Gb/s

TUF GAMING B550-PRO AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 14 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C®, and Aura Sync RGB lighting support AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series desktop processors Enhanced power solution: 12+2 DrMOS power stages, 8+4 pin ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink,dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: PCIe 4.0 M.2,Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C® support Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in Two-Way AI Noise Cancelation: Provides crystal-clear in-game voice communication TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors ** Refer to www.asus.com for CPU support list Chipset AMD B550 Memory AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *AMD RyzenTM 4000 G-Series Processors4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors1 x PCIe 4.0 x16 (x16 mode)AMD RyzenTM 4000 G-Series Processors1 x PCIe 3.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode)3 x PCIe 3.0 x1* Support PCIe bifurcation for RAID on CPU function. Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s portsAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)AMD RyzenTM 4000 G-Series Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*26 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LAN Realtek RTL8125B 2.5Gb EthernetTUF LANGuard Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors- Unique de-pop circuit USB Ports Rear USB Port (Total 8)2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A)Front USB Port (Total 7)3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)4 x USB 2.0 port(s)(4 x Type-A) Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 4- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header Back I/O Ports 1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)2 x USB 3.2 Gen 1 (blue) Type-A4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)1 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s) Internal I/O Ports 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector2 x Aura RGB Strip Headers2 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1 front panel TypeC™ connector1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header Accessories User´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Operating System Windows® 10 64-bit Form Factor ATX Form Factor12 x 9.6 inch (30.5 x 24.4 cm) Note *1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.*2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Budowa: ATX
Chipset: AMD B550
VRM: brak danych
MOSFETs CPU: brak danych
MOSFETs SoC: brak danych
RAM: 4x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (10Gb/?s, B550), 1x USB-A 3.1 (10Gb/?s, B550), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Thunderbolt-Header 13-Pin, 1x COM Debug-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin, 1x Thermal-czujnik
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 2x pasywne chłodzenie M.2, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)


Budowa: ATX
Chipset: AMD B550
VRM: brak danych
MOSFETs CPU: brak danych
MOSFETs SoC: brak danych
RAM: 4x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (10Gb/?s, B550), 1x USB-A 3.1 (10Gb/?s, B550), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Thunderbolt-Header 13-Pin, 1x COM Debug-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin, 1x Thermal-czujnik
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 2x pasywne chłodzenie M.2, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)


ASUS TUF GAMING B550-PRO. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Obsługa przetwarzania równoległego: 2-Way CrossFireX, Maks. rozdzielczość: 3840 x 2160 px. Obsługiwany typ USB: USB Typu-A, USB Type-C
