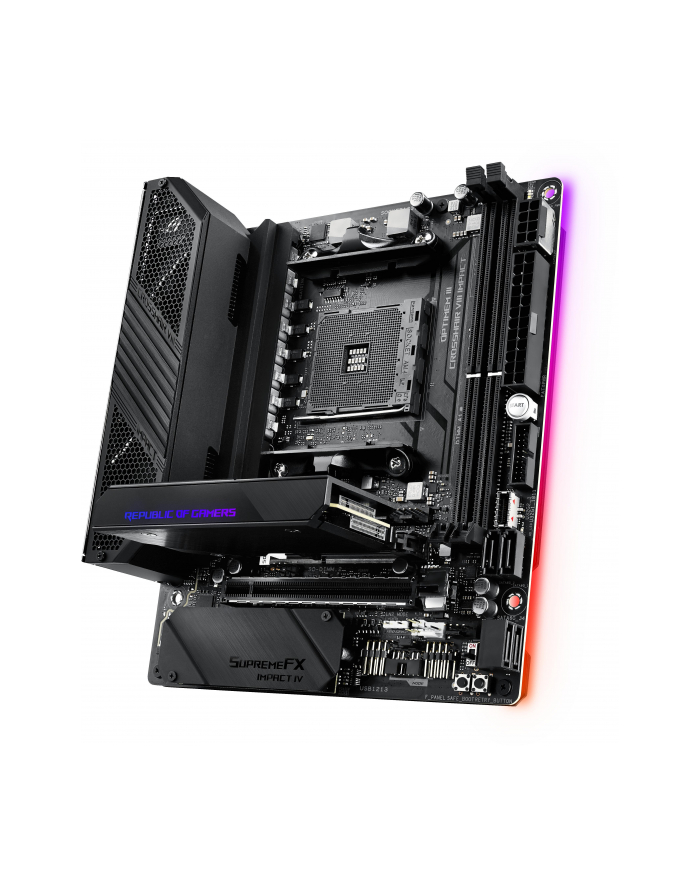

ASUS ROG CROSSHAIR VIII IMPACT - Socket AM4 - mainboard

ROG CROSSHAIR VIII IMPACT AMD AM4 X570 Mini-DTX enthusiast gaming motherboard with an SO-DIMM.2 card (dual M.2), Wi-Fi 6 (802.11 ax), PCIe 4.0, SupremeFX audio, Aura Sync RGB LED lighting, SATA 6Gb/s and USB 3.2 Gen 2 AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.1 Gen2 and AMD StoreMI to maximise connectivity and speed SO-DIMM.2: Bundled expansion card with heatsink allows two M.2 drives to be connected via an SO-DIMM interface and helps control SSD thermals for maximum performance Comprehensive thermal design: An active VRM and chipset combo heatsink and full-sized aluminium backplate with heatpipe add mass to help absorb more heat High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support and Intel Gigabit Ethernet with ASUS LANGuard supports GameFirst V technologies Advanced water-cooling features: ROG water-cooling zone, water pump + header, and radiator headers enable easy integration with a custom water-cooling loop 5-Way Optimisation: Automated system-wide tuning creates overclocking and cooling profiles tailor made for your rig DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot and IMPACT Control Card VI, which adds BIOS Flashback, Clr CMOS, Q-Code and FlexKey functionality Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9023P for enthusiast-grade audio performance, Sonic Studio III and DTS Sound Unbound TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors* Refer to www.asus.com for CPU support list Chipset AMD X570 Memory 3rd Gen AMD Ryzen™ Processors2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory Architecture* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* Double Capcity DRAM support depends on the DRAM models Expansion Slots 1 x PCIe 4.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x8 mode) Storage 3rd Gen AMD Ryzen™ Processors: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 Wireless and Bluetooth Intel® Wi-Fi 6 AX200Supports channel bandwidth: HT20/HT40/HT80/HT1602 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHzUp to 2.4Gbps transfer speed LAN Intel® I211-ATASUS LAN GuardROG GameFirst Technology Bluetooth Bluetooth® 5.0 Audio ROG SupremeFX8-Channel High Definition Audio CODEC- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality120dBSNR stereo playback outputand113dBSNR recording input- SupremeFX Shielding Technology- ESS® ES9023P- Supports up to 32-Bit/192kHz playbackAudio Feature:- Sonic Studio III + Sonic Studio Virtual Mixer- DTS® Sound Unbound- Optical S/PDIF out port(s) at back panel- Sonic Radar III* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB Ports 3rd Gen AMD RyzenTM Processors:2 x USB 3.2 Gen 2 port(s)2 x USB 3.2 Gen 1 port(s) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors:4 x USB 3.2 Gen 1 port(s) AMD X570 chipset:1 x USB 3.2 Gen 2 front panel connector port(s)4 x USB 3.2 Gen 2 port(s)2 x USB 2.0 port(s) Overlocking Features Extreme Engine Digi+ :- Infineon TDA21472 Power Stage- MicroFine Alloy Chokes- 10K Black Metallic CapacitorsROG Extreme OC kit :- OptiMem III- Safe Boot button- Slow Mode- LN2 ModeExtreme TweakerROG Patented Pre-mounted I/O ShieldROG Exclusive Software- RAMCache III- RAMDisk- CPU-Z- GameFirst V Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo AppAURA :- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Exclusive Features :- USB BIOS Flashback®- AI Suite 3- Ai Charger- ASUS CrashFree BIOS 3- Armoury Crate- ASUS NODE: hardware control interface- ASUS EZ Flash 3- ASUS C.P.R.(CPU Parameter Recall)- Clear CMOS Button- Reset Button- Start Button- ReTry buttonASUS Q-Design :- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM Back I/O Ports 1 x Optical S/PDIF out1 x Clear CMOS button(s)1 x USB BIOS Flashback® Button(s)1 x ASUS Wi-Fi Module1 x Q-Code LED3 x LED-illuminated audio jacks2 x USB 3.2 Gen 1 (up to 5Gbps) ports6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()Anti-surge LAN (RJ45) port Internal I/O Connectors 1 x Aura RGB Strip Headers2 x Addressable Gen 2 header(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x W_PUMP+ connector1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Slow Mode switch(es)1 x Reset button(s)1 x Node Connector(s)1 x LN2 Mode jumper(s)1 x Safe Boot button1 x ReTry button1 x System panel connector1 x T_Sensor Connector1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Start button2 x Radiator Fan Headers1 x USB 3.2 Gen 2 (up to 10Gbps) connector1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User´s manual4 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x ROG big sticker2 x M.2 screw kit (short screw and mount)1 x Wi-Fi Antenna(s)1 x Extension Cable for RGB strips (80 cm)1 x Extension cable for Addressable LED1 x Panel cable1 x ROG coaster(s)1 x ROG Thank you card1 x ROG SO-DIMM.2 with heatsinks1 x 2-in-1 Rubber pad BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 Manageability WOL, PXE Operating System Windows® 10 64-bit Form Factor Mini-DTX Form Factor8 x 6.7 inch (20.3 x 17 cm)

Budowa: mini-DTX
Chipset: AMD X570
CPU-Kompatybilność: Ryzen 3000, Ryzen 3000G/GE, Ryzen 2000, Athlon 300G/GE, TDP-Limit: 105W (Producent)
VRM: 6 rzeczywistych faz (4+2), kontroler PWM: ASP1405 (IR35201) (max. 8 faz)
MOSFETs CPU: 8x 70A TDA21472
MOSFETs SoC: 2x 70A TDA21472
RAM: 2x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 64GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 2x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242, DIMM.2)
Złącza zewnętrzne: 1x USB-C 3.1 (X570), 3x USB-A 3.1 (X570), 2x USB-A 3.1 (CPU), 2x USB-A 3.0, 1x Gb LAN (Intel I211-AT), 3x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB-C 3.1 (20-Pin Key-A Header, X570), 2x USB 3.0, 2x USB 2.0, 4x SATA 6Gb/s (X570), 1x ASUS Node
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x pompka 4-Pin, 1x Thermal-czujnik, 1x czujnik przepływu
Header Oświetlenie: 1x RGB-Header 4-Pin (5050), 2x RGB-Header 3-Pin (WS2812B)
Przyciski/przełączniki: przycisk Power (wewn.), 2x przycisk Reset (wewn.), przycisk Reset (zewn.), SafeBoot-Button (wewn.), przycisk Retry (wewn.), Clear-CMOS-Button (wewn.), Clear-CMOS-Button (zewn.), USB BIOS Flashback (wewn.), USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1220/?ASUS SupremeFX), DAC (ESS ES9023P)
Poziom RAID: 0/?1/?10 (X570)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Grafika: brak
Oświetlenie: RGB, 1 Zone (strona prawo)
Cechy dodatkowe produktu: AMD X570 z wentylatorem, Audio+solid capacitors, dioda diagnostyczna (wyświetlacz segmentowy), dioda diagnostyczna (LED-wskaźniki), 2x pasywne chłodzenie M.2, I/?O-zaślepka zintegrowany, backplate, Bluetooth 5.0 + WLAN 802.11a/?b/?g/?n/?ac/?ax (2x2, Intel AX200)
Gwarancja producenta: trzy lata (realizacja przez sklep)
Uwaga: pisowania USB


ASUS ROG Crosshair VIII Impact. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 64 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Rodzaj interfejsu sieci Ethernet: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Kontroler LAN: Intel® I211-AT, Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac). Przeznaczenie: mini PC, Rodzaj płyty: Mini DTX, Rodzina płyt z chipsetami: AMD
