ASUS PRIME B650M-A

PRIME B650M-A AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, DisplayPort/HDMI®/VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list. Chipset AMD B650 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Graphics 1 x DisplayPort**1 x VGA port1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD B650 Chipset2 x PCIe 4.0 x16 slots (support x1 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD B650 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. Ethernet 1 x Realtek 2.5Gb Ethernet USB Rear USB (Total 8 ports)2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x VGA port1 x HDMI® port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAura Sync- Aura RGB header- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Screw Package for M.2 SSDDocumentation1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

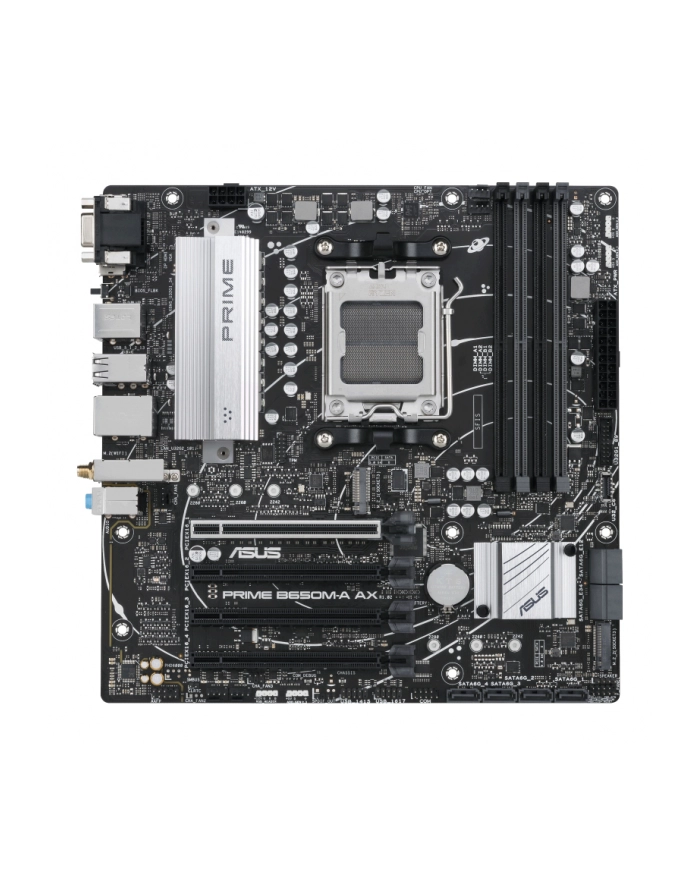

ASUS PRIME B650M-A AX. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen™ 7. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 6 (802.11ax), Standardy Wi- Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
