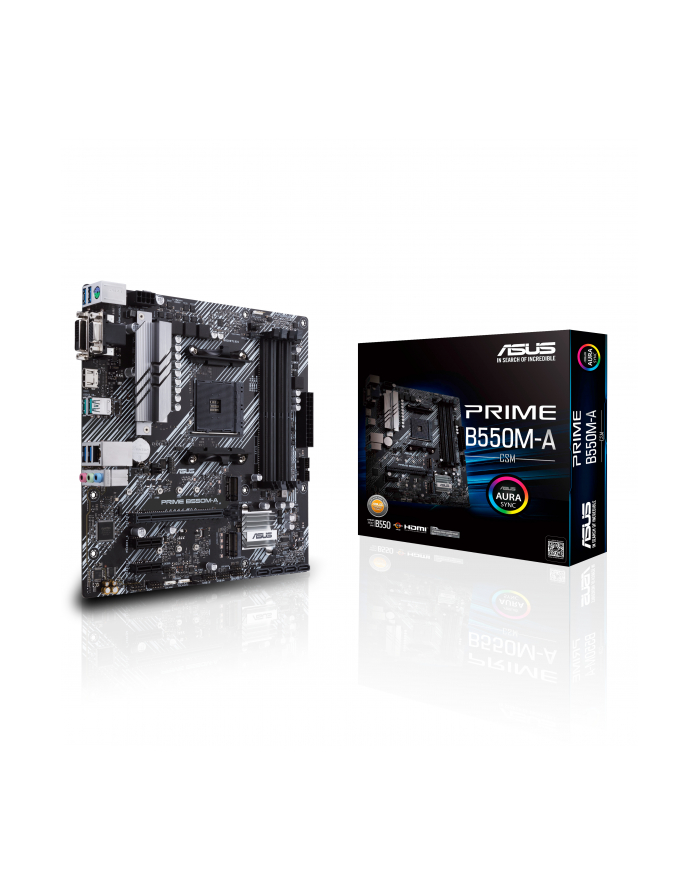

Asus PRIME B550M-A / CSM B550 - Socket AM4 - Mainboard

PRIME B550M-A/CSM AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware TECHNICAL SPECIFICATIONS CPU Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors ** Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x D-Sub1 x DVI-D1 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types. Expansion Slots 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset:1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature:- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors* Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Rear USB Port (Total 6)2 x USB 3.2 Gen 2 port(s)(2 x Type-A)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headerASUS Lighting Control Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)4 x USB 3.2 Gen 1 (blue) Type-A3 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector Accessories 1 x ACC Express Activation Key CardI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVDUser manual1 x M.2 SSD screw package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Budowa: µATX
Chipset: AMD B550
VRM: 6 rzeczywistych faz (4+2), 8 wirtualnych faz (4+4), kontroler PWM: ASP1106 (RT8877C, max. 6 rzeczywistych faz)
MOSFETs CPU: 4x 58A SiRA14DP/?8x SiRA12DP
MOSFETs SoC: 4x 58A SiRA14DP/?SiRA12DP
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242)
Złącza zewnętrzne: 1x VGA (iGPU), 1 x DVI-D (iGPU), 1x HDMI 2.1 (iGPU), 2x USB-A 3.1 (10Gb/?s, B550), 4x USB-A 3.0 (5Gb/?s), 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x S/?PDIF-Header, 1x Speaker-Header, 1x COM Debug-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC887)
Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: pomarańczowy, 1 Zone (obwód audio)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, obsługa ECC
Gwarancja: trzy lata (w tym


ASUS Prime B550M-A/CSM. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA III. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet, Kontroler LAN: Realtek RTL8111H. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
