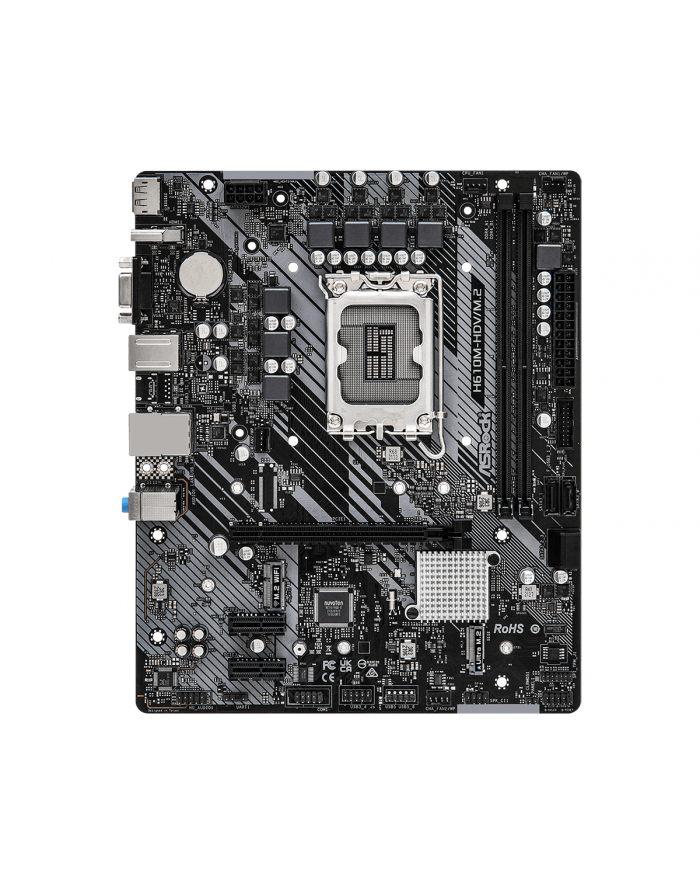

asrock Płyta główna H610M-HDV/M2 s1700 2DDR4 DP/HDMI M.2 mATX

H610M-HDV/M.2 Supports 12th Gen Intel® Core™ Processors (LGA1700) 6 Phase Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 2 PCIe 3.0 x1 1 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 5 USB 2.0 (2 Rear, 3 Front) Intel® Gigabit LAN Unique Feature ASRock Super Alloy- Premium Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports 12th Gen Intel® Core™ Processors (LGA1700)- Digi Power design- 6 Power Phase design- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology Chipset - Intel® H610 Memory - Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 non-ECC, un-buffered memory up to 3200- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB- Supports Intel® Extreme Memory Profile (XMP) 2.0 BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment Graphics - Intel® Xe Graphics Architecture (Gen 12)- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)- Supports Surge Protection LAN - Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports UEFI PXE Slots - 1 x PCIe Gen4x16 Slot*- 2 x PCIe Gen3x1 Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks Storage - 4 x SATA3 6.0 Gb/s Connectors*- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** *If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. **Supports NVMe SSD as boot disksSupports ASRock U.2 Kit Connector - 1 x COM Port Header- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Accessories - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets Hardware Monitor - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V Form Factor - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm- Solid Capacitor design OS - Microsoft® Windows® 10 64-bit / 11 64-bit Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Typ produktu: płyta główna
EAN: 4710483936517
Kod producenta: 90-MXBH60-A0UAYZ
Gniazdo: 1700
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10, gotowy na Windows 11
Procesor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS ( Jezioro Olchowe), Core i9 13xxxK (Jezioro Raptor), Pentium Gold Gxxxx (Jezioro Olchowe), Celeron Gxxxx (Jezioro Olchowe)
Chipset: Intel® H610
Gniazda: 1x (w tym: 1x PCIe x16)
: 1
BIOS: 128Mbit UEFI AMI BIOS
: TAk
: TAk
Współczynnik kształtu: µATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 8-pin)
Pamięć: 64 GB
: 2x DDR4
SDRAM DDR4
: DDR4-3200/3000/2933/2800/2666/2400/2133Mhz
: 2
: 8.
: TAk
: 8192 Mbit
Połączenia (zewnętrzne): 1
: 1
: 2
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
: 4
: 1
: 1
: 1
: 1
: 1
: 1
: 1
Połączenia (wewnętrzne): 4
: 1
: 2
Połączenia (opcjonalnie): 2
: 2
: TAk
Domyślny RGB: synchronizacja AURA
Kontroler SATA: Intel® H610
Kontroler USB: Intel® H610
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: Realtek ALC897/887
LAN: Realtek RTL8111H
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS.
Akcesoria: instrukcja szybkiej instalacji, płyta CD, osłona I/O, 2x kable SATA
Wymiary: szerokość: 197 mm x wysokość: 188 mm
