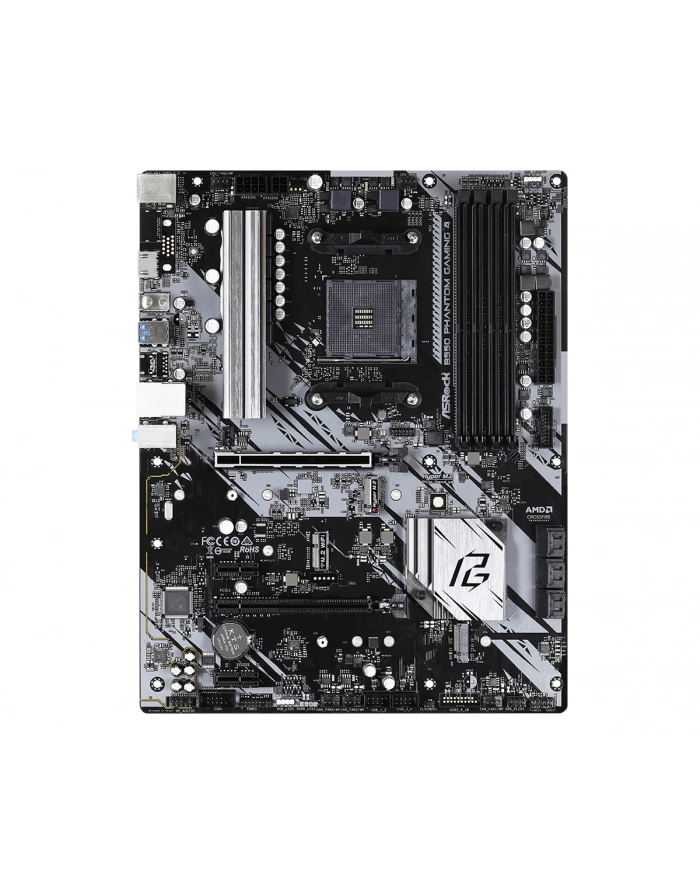

asrock Płyta główna B550 Phantom Gaming 4 AM4 4DDR4 HDMI M.2 ATX

B550 Phantom Gaming 4 Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors 8 Power Phase Design, Digi Power Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI AMD CrossFireX™ 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 8 USB 3.2 Gen1 (2 Front, 6 Rear) Gigabit LAN TECHNICAL SPECIFICATIONS Gaming Armor Memory- 15µ Gold Contact in DIMM SlotsCooling- XXL Aluminum Alloy HeatsinkAudio- Nahimic Audio Unique Feature ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*- Digi Power design- 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. Chipset - AMD B550 Memory - Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 Port- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port- Supports Microsoft® PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. Slots AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*AMD Ryzen series APUs- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* - 2 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module *Supports NVMe SSD as boot disks Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** * M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled. ** Supports NVMe SSD as boot disksSupports ASRock U.2 Kit LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE Connector 1 x COM Port Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel- Nahimic Audio Rear panel I/O - 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar BIOS - 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment Accessories - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screw for M.2 Socket Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP Operating System - Microsoft® Windows® 10 64-bit Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- Solid Capacitor design- 2oz Copper PCB Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Budowa: ATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 8 wirtualnych faz
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260), 1x M.2/?M-Key (PCIe 3.0 x2/?SATA, 2280/?2260/?2242), 1x M.2/?E-Key (PCIe, 2230)
Złącza zewnętrzne: 1x HDMI 2.1, 6x USB-A 3.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 4x wentylator/?pompa 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC1200)
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Oświetlenie: RGB, 1 Zone (I/?O-przykrycie)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki)
Gwarancja producenta: trzy lata (realizacja przez sklep)
