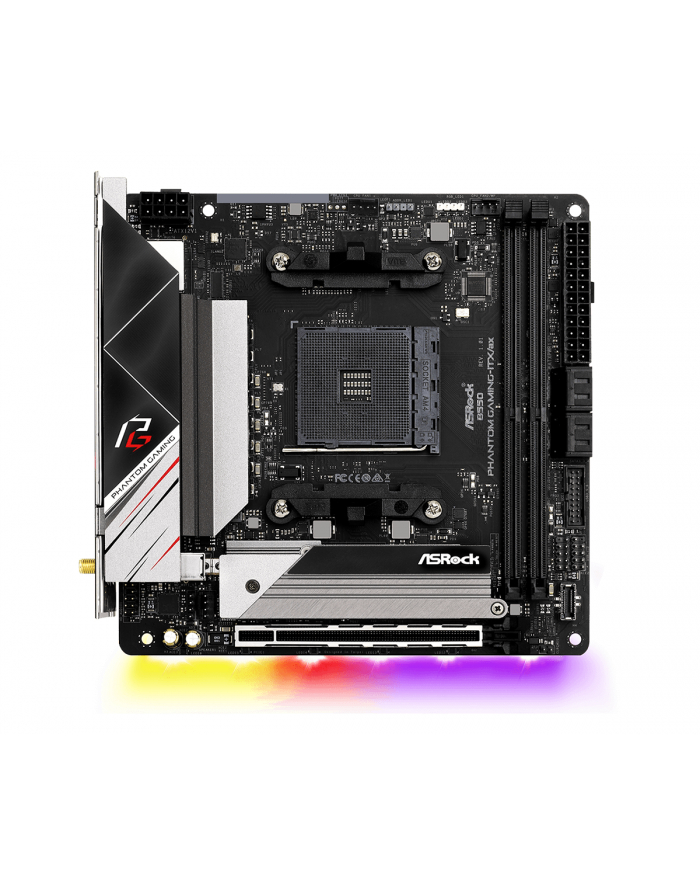

Asrock B550 Phantom Gaming-ITX / ax - Socket AM4 - mainboard

B550 Phantom Gaming-ITX/ax Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors 8 Power Phase Design, Digi Power, 90A Dr.MOS Supports DDR4 5400+ (OC) 1 PCIe 4.0 x16 Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 6 USB 3.2 Gen1 (2 Front, 4 Rear) Intel® 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1 TECHNICAL SPECIFICATIONS Gaming Armor Power- Hi-Density Power Connectors (24 pin and 8 pin)Memory- 15µ Gold Contact in DIMM SlotsVGA Card- 15µ Gold Contact in VGA PCIe Slot (PCIE1)Internet- Intel® 2.5G LANAudio- Nahimic Audio Unique Feature ASRock USB 3.2 Gen2- ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- Premium 90A Power Choke- 90A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 8 Layer PCB- 2oz Copper PCBIntel® 2.5G LANIntel® 802.11ax WiFiASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*- Digi Power design- 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. Chipset - AMD B550 Memory - Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Next Generation Ryzen series APUs support DDR4 5400+(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory- Max. capacity of system memory: 64GB**- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports- Supports Microsoft® PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. Slots AMD Ryzen series CPUs (Matisse)- 1 x PCI Express x16 Slot (PCIE1: Gen4x16 mode)*AMD Ryzen series APUs- 1 x PCI Express x16 Slot (PCIE1: Gen3x16 mode)* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)- 15µ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)*- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disksSupports ASRock U.2 Kit (M2_1) LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- GigaLAN Intel® I225V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE Wireless LAN - Intel® 802.11ax WiFi Module- Supports IEEE 802.11a/b/g/n/ax- Supports Dual-Band (2.4/5 GHz)- Supports WiFi6 802.11ax (2.4Gbps)- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.1 + High speed class II- Supports MU-MIMO Connector - 1 x RGB LED Header*- 1 x Addressable LED Header* Supports in total up to 5V/3A, 15W LED Strip- 1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- 120dB SNR DAC with Differential Amplifier- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- 15µ Gold Audio Connector- Nahimic Audio Rear panel I/O - 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar BIOS - 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V, 2.50V, +1.8V, VDDP Voltage Multi-adjustment Accessories - Quick Installation Guide, Support CD- 2 x SATA Data Cables- 1 x ASRock WiFi 2.4/5 GHz Antenna- 1 x Screw for M.2 Socket Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Operating System - Microsoft® Windows® 10 64-bit Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm- 8 Layer PCB- 2oz Copper PCB Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Typ produktu: płyta główna
EAN: 4710483931611
Kod producenta: 90-MXBD40-A0UAYZ
Gniazdo: AM4
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10
Procesor: procesory AMD AM4 4. (Zen 3) 3. generacji (Zen 2). NIE jest kompatybilny z Ryzen 3 3200G i Ryzen 5 3400G. [Ryzen 3 3xxx (Matisse), Ryzen 3 3xxxX (Matisse), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 4xxx (Renoir) , Ryzen 5 PRO 4xxxG (Renoir), Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxx (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxxX ( Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxxX (Vermeer)]
Chipset: AMD B550
Gniazda: 1x (w tym: 1x PCIe x16)
BIOS: 256Mbit AMI UEFI BIOS
Współczynnik kształtu: Mini-ITX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 8-pin)
Pamięć: 64 GB
: 2x DDR4
SDRAM DDR4
: DDR4-4533(ogrzewanie) / 4466(ogrzewanie) / 4400(ogrzewanie) / 4333(ogrzewanie) / 4266(ogrzewanie) / 4200(ogrzewanie) / 4133(ogrzewanie) / 4000(ogrzewanie) / 3866(ogrzewanie) / 3800( przegrzanie) / 3733(bieg) / 3600(bieg) / 3466(bieg) / 3200 / 2933 / 2667 / 2400 / 2133MHz
: 2
: 8.
: TAk
: TAk
: 8192 Mbit
Połączenia (zewnętrzne): 1
: 1
: 1
: 4
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 1
: 1
: 1
: 1
: 1
: 1
: TAk
: TAk
Połączenia (wewnętrzne): 4
: 2
: M
: 1
: PCIe
: 80-80mm
: 1
: 1
: 3
Połączenia (opcjonalnie): 2
: 1
: 2
: TAk
Domyślnie RGB: LED RGB
Kontroler SATA: AMD B550
bezpośrednio używane poziomy RAID: 0, 1, 10
Kontroler USB: AMD B550
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: Realtek ALC1220
LAN: Intel® I225V
: Moduły Wi-Fi Intel® 802.11ax
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS.
Akcesoria: 2x kable SATA, 1x śruba do gniazda M.2, 1x antena WiFi
Waga: 1,2 kg
