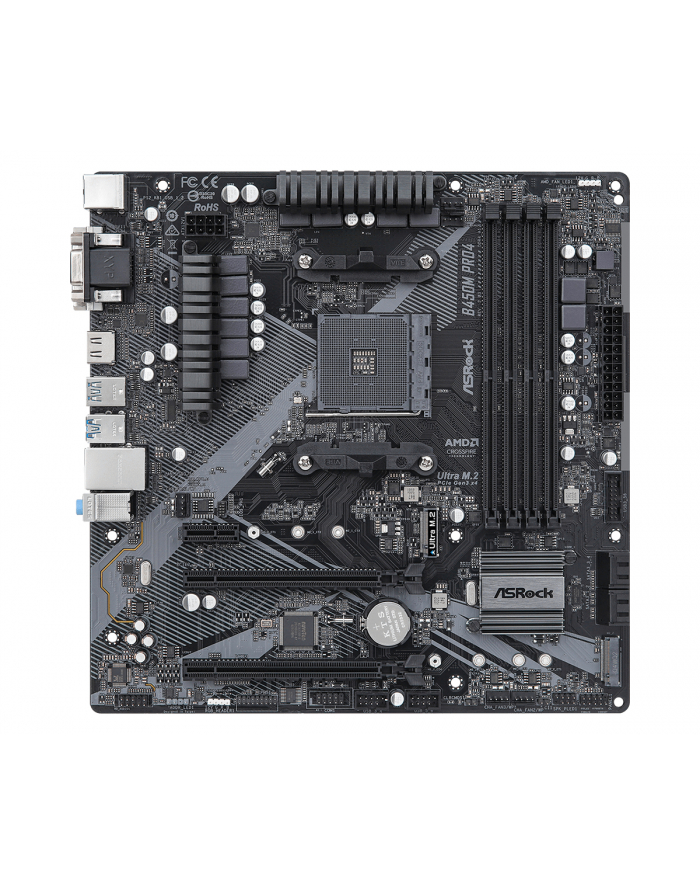

ASRock B450M Pro4 - AM4

B450M Pro4 R2.0 Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Supports DDR4 3200* 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1 AMD Quad CrossFireX™ Graphics Output:HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec) 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3) 2 USB 3.2 Gen2 (Rear Type-A+C) 6 USB 3.2 Gen1 (2 Front, 4 Rear) Realtek Gigabit LAN *Actual support may vary by CPU. Unique Feature ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- Premium 42A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Ultra M.2 (PCIe Gen3 x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors- Digi Power design- 10 Power Phase design Chipset - AMD Promontory B450 Memory - Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.Please refer to below table for AMD non-XMP memory frequency support. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- DRAM Voltage multi-adjustment Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)- Supports Surge Protection LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE Slots AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)AMD Ryzen series CPUs (Picasso, Raven Ridge)- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)AMD Athlon series CPUs- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) - 1 x PCI Express 2.0 x1 Slot- Supports AMD Quad CrossFireX™ and CrossFireX™ *Supports NVMe SSD as boot disks Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module *M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled. **Supports NVMe SSD as boot disksSupports ASRock U.2 Kit Connector - 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 1 x Addressable LED Header**- 1 x AMD Fan LED Header***- 1 x CPU Fan Connector (4-pin)****- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock A-Tuning- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm- Solid Capacitor design OS - Microsoft® Windows® 10 64-bit / 11 64-bit* *Summit Ridge do not officially support Windows® 11. Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Budowa: microATX
Chipset: AMD B450
RAM: 4x DDR4 DIMM, dual PC4-25600U/?DDR4-3200 (OC), max. 64GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 1x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (SATA, 2280/?2260/?2242/?2230)
Złącza zewnętrzne: 1x VGA, 1 x DVI-D, 1x HDMI 1.4, 1x USB-C 3.1 (B450), 1x USB-A 3.1 (B450), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 2x USB 3.0, 4x USB 2.0, 4x SATA 6Gb/s (B450), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 3x wentylator/?pompa 4-Pin
Header Oświetlenie: 2x RGB-Header 4-Pin (5050), 1x RGB-Header 3-Pin (WS2812B)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC892)
Poziom RAID: 0/?1/?10 (B450)
Multi Procesor graficzny: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Grafika: IGP (przez CPU/?APU)
Oświetlenie: brak
Cechy dodatkowe produktu: Audio+solid capacitors
Gwarancja producenta: trzy lata (realizacja tylko przez sklepy)
Uwaga: płyta główna certyfikowany do HDMI 1.4. Od Ryzen 2000 HDMI 2.0 możliwy.
