Akasa AK-PCCM2P-05

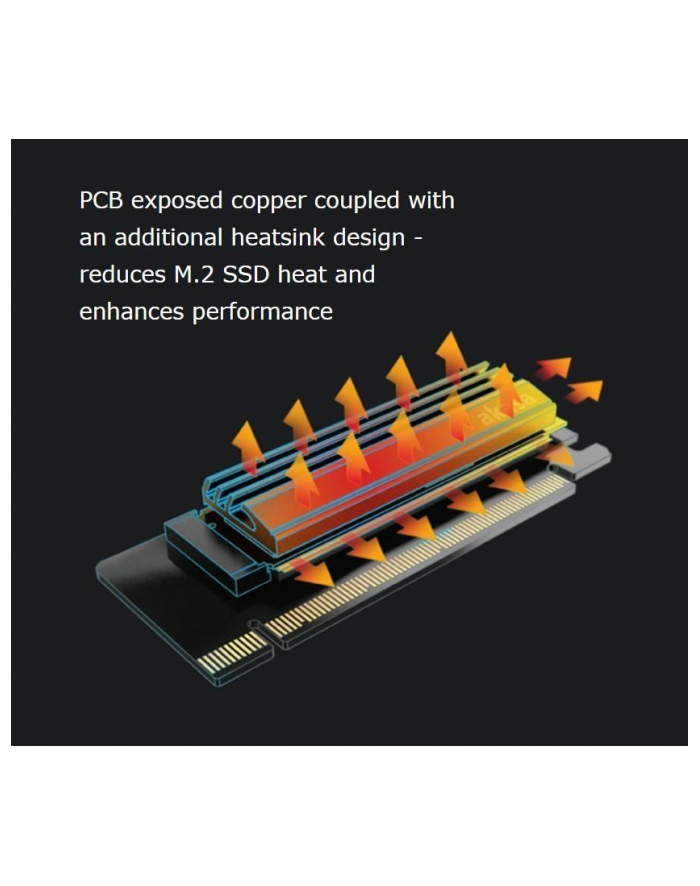

M.2 SSD to PCIe adapter card with heatsink cooler Easily add and cool M.2 PCIe NVMe storage to an existing motherboard or PC. M.2 PCIe NVMe Gen 3 x4 to x16 pinout host adapter Low profile 31mm height, fits in a 1U chassis Designed for M.2 PCIe SSD: M.2 SSD heatsink Thermal pad (2.3mm or 1.5mm height) M.2 SSD to PCIe adapter card TECHNICAL SPECIFICATIONS Application Converts M.2 SSD to work in a main board PCIe x16 slot Designed for M.2 PCIe "M Key" and "M+B Key" SSDSupports 2230, 2242, 2260 and 2280 size PCIe SSD Material Metal bracket, printed circuit board, exposed copper, aluminium heatsink Operating system compatibility OS independent; no additional drivers or software required Dimensions (L x W x H) 99.75 x 38.23 x 14 mm (with heatsink and thermal pad) Operating temperature 0oC - 55oC Product code AK-PCCM2P-05
